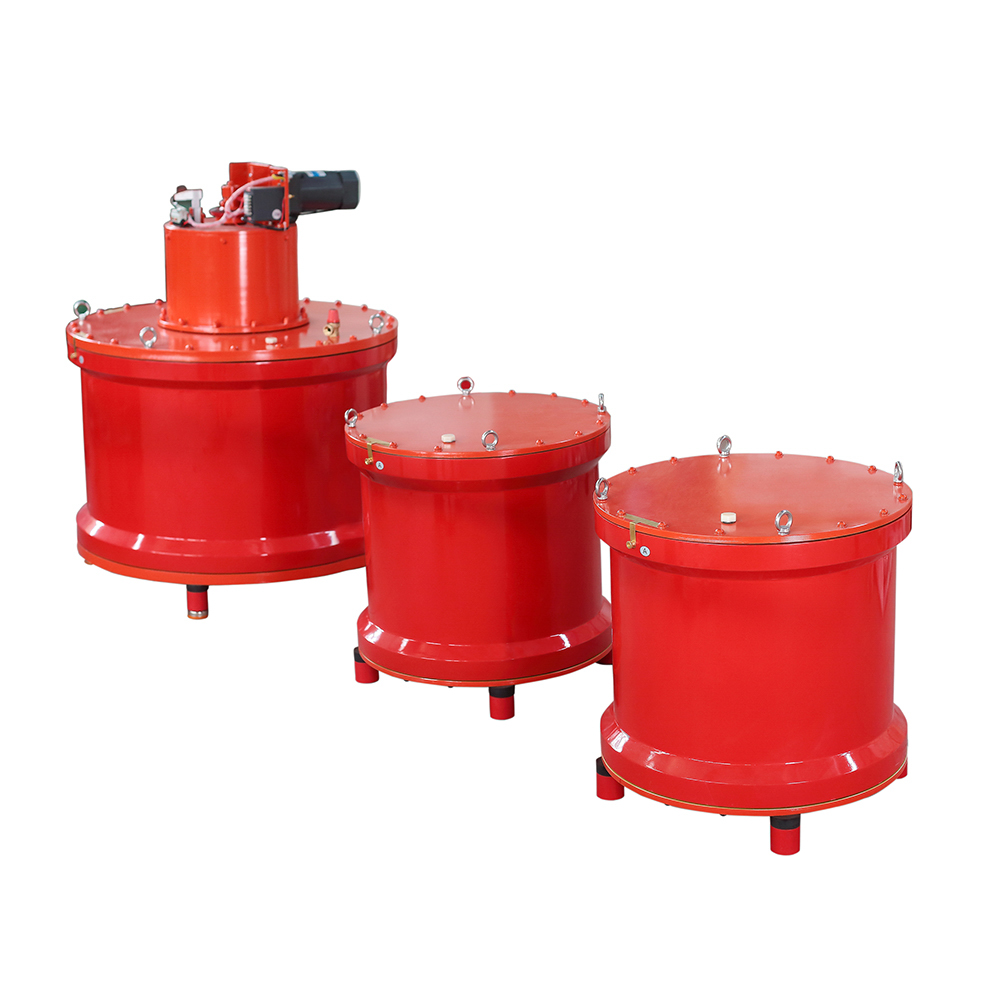

UHV(L) Power Frequency Series Resonant System
The UHV(L) Power Frequency Series Resonant Test System is designed for AC withstand tests on single hydro-generators with a capacity of 250MW or less. This system delivers an output voltage waveform with a distortion rate (THD) superior to all existing AC withstand voltage devices, effectively preventing flashover or breakdown and automatically extinguishing arcs after flashover. The main unit of the power frequency withstand voltage tester features large output capacity while requiring only a small power supply.
The UHV(L) Power Frequency Series Resonant Test System operates on the principle of series resonance, where the inductive reactance of its reactors is tuned to match the capacitive reactance of the test object (e.g., generator windings), creating resonance at power frequency. This allows the system to generate high output test voltages while drawing minimal input current, making it highly efficient.
Key advantages include:
High efficiency and low input power requirement due to resonance;
Superior output waveform quality with low distortion (THD);
Automatic arc extinguishing and protection against flashover or breakdown;
Portable and adaptable design, suitable for on-site testing.
This system offers a reliable, energy-saving solution for high-voltage diagnostic testing in power generation and transmission applications.
Parametros del producto
Parámetros técnicos
| Tensión de salida nominal | 0 ~ 60kV(AC RMS) and below |
| frecuencia de salida | 50Hz |
| Resonance voltage waveform | Onda sinusoidal pura, tasa de distorsión de forma de onda ≤1% |
| Sistema de trabajo | Full power conticontrol consolenuous working time of 1min |
| quality factor | 10～40 |
| Capacidad máxima de prueba | 3000kVA y menos |
| Fuente de alimentación de trabajo | 380V±15%、Power frequency 50Hz |
Serial product configuration(Scope of application(Ac withstand voltage test for generator or motor with outlet voltage of 20kV or below, test frequency: 50Hz))

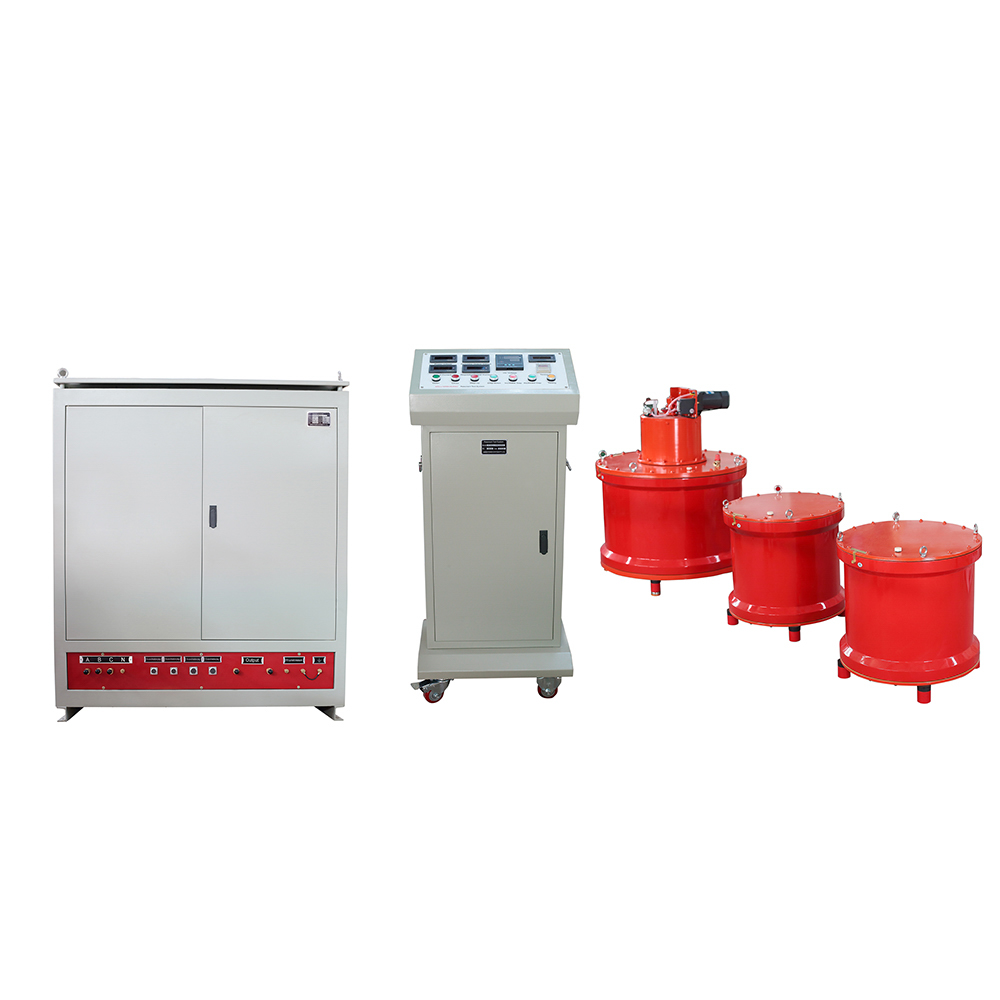

| Modelo del Producto | control console | Voltage regulator | reactor(dry) | Excitation transformer(dry) | Divisor de voltaje | Ámbito de aplicación |
| UHV(L)- 200kVA/25kV | 30kW | 30kVA(electric) | 200kVA/25kV Adjustable one | 30kVA dry | 30kV | hydrodynamo.0.4～1.0μF.(10kV/40MW) |
| UHV(L)- 300kVA/50kV | 60kW | 60kVA(electric) | 300kVA/50kV Adjustable one | 60kVA oil-immersed | 50kV | Thermal generator.0.27～0.33μF.(20kV/300MW) |
| UHV(L)- 600kVA/50kV | 60kW | 60kVA(electric) | 200kVA/50kV Adjustable one 400kVA/50kV Adjustable one | 60kVA oil-immersed | 50kV | Thermal generator.0.113～0.45μF.(20kV/600MW) |
| UHV(L)- 1200kVA/50kV | 120kW | 120kVA(induction) | 200kVA/50kV Fixed two 800kVA/50kV Adjustable one | 120kVA oil-immersed | 50kV | hydrodynamo.0.6～1.8μF.(20kV/250MW) |
| UHV(L)- 2750kVA/55kV | 300kW | 300kVA(induction) | 750kVA/55kV Fixed two 1250kVA/55kV Adjustable one | 120kVA oil-immersed | 60kV | hydrodynamo.1.6～3.3μF.(20kV/770MW) |
Note: the solution can be customized according to the parameters of test objects
Capacitance of the power system commonly used hydrodynamo reference table
| hydrodynamo | Rated Capacity(WM) | rated voltage(kV) | Phase capacitor(μF) |
| 72.5～85 | 10.5 | 0.694 | |
| 125～150 | / | 1.8～1.9 | |
| 300 | 15.75 | 1.7～2.5 | |
| 400 | 18.0 | 2～2.5 | |
| 600 | / | 2.1～2.5 |
 |  |  |
Compared to traditional power frequency test transformers, its advantages are extremely prominent:
Firstly, the power capacity requirement is low. When testing a 1km 110kV cable, only a 50kW power supply is needed to replace the traditional 2000kVA test transformer, greatly reducing the on-site power supply pressure;
Secondly, it has strong portability, with lightweight design of core components and a single weight of ≤ 60kg. It is equipped with mobile rollers and specialized lifting structures, making it suitable for transportation and layout in complex environments such as substations and wind power sites;
Thirdly, it has a wide range of adaptability. By replacing the reactor module and excitation transformer, it can meet the testing needs of various equipment such as 6-500kV cables, 35-500kVGIS, and 10-500kV transformers;
Fourthly, it has low operating costs, low reactive power loss in resonance state, energy consumption only 1/30-1/100 of traditional equipment, and simple equipment maintenance, with a service life of over 15 years.
Typical application scenarios
AC voltage withstand test for hydroelectric generators: for units with a single capacity of 250MW or less, verify the insulation performance of the stator winding.
High voltage cable withstand voltage test: applicable to the handover and preventive testing of 6kV~500kV cross-linked polyethylene (XLPE) cables.
Transformer voltage withstand test: Conduct power frequency voltage withstand test on 6kV~500kV transformers to detect insulation defects.
GIS and SF6 switch test: Verify the insulation strength of gas insulated switchgear equipment.
Voltage withstand test of other capacitive equipment, such as busbars, bushings, transformers, and other high-voltage equipment.
FAQ about AC resonant test systems
1. What is the purpose of series resonance withstand voltage test?
Mainly used to detect the insulation performance of power equipment (such as cables, transformers, GIS, etc.) at specific voltages, discover potential insulation defects, and prevent breakdown during operation.
2. What are the advantages of series resonance test compared to traditional power frequency withstand voltage test?
The series resonance test can achieve high test voltage at lower power supply capacity, with lower requirements for the capacitance of the tested object. The electric field generated during resonance is more uniform, and the "impact" on equipment insulation is relatively small.
3. What safety precautions should be taken when conducting a series resonance test?
Strict testing procedures must be followed, including grounding before testing and keeping personnel away during testing. The device itself should also have comprehensive protection functions.
4. How to choose a suitable series resonant withstand voltage test device based on the test sample?
It is necessary to select the appropriate device model based on the capacitance range of the test sample and the required test voltage level, to ensure that the inductance and compensation capability of the device can meet the requirements.
