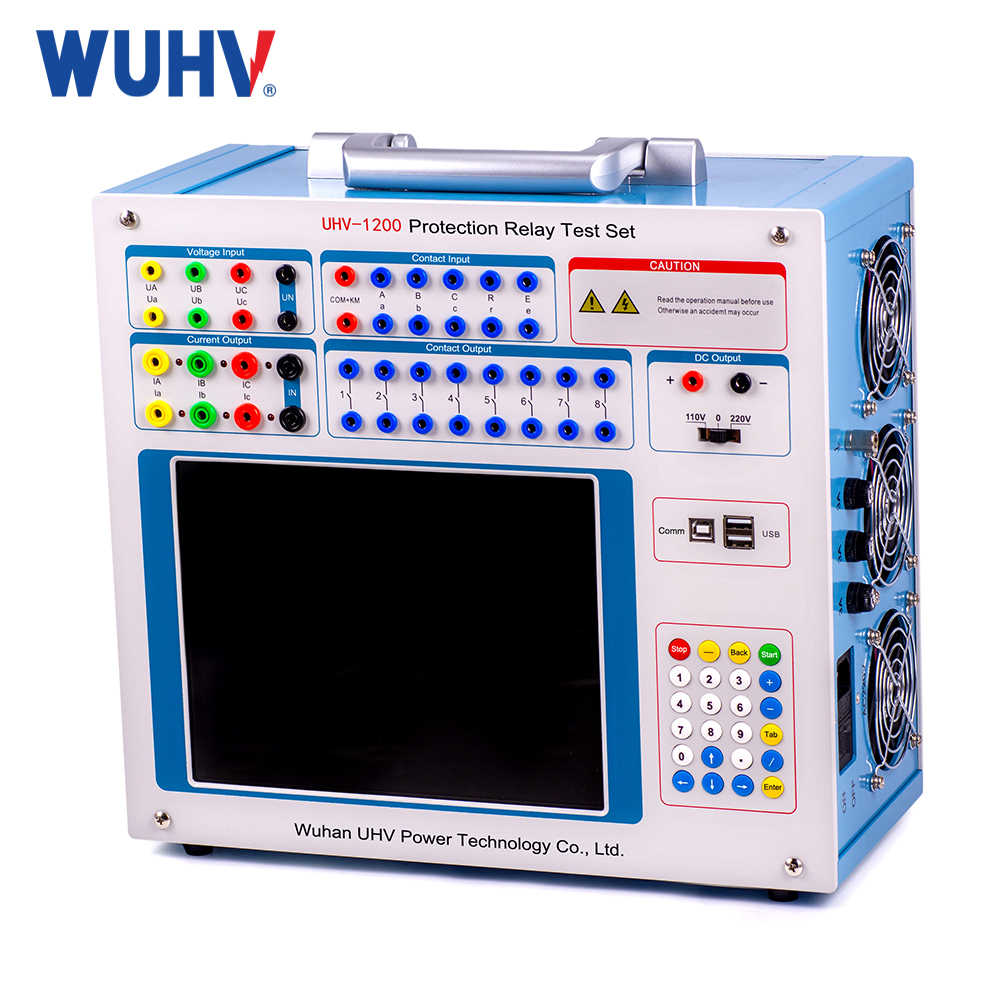

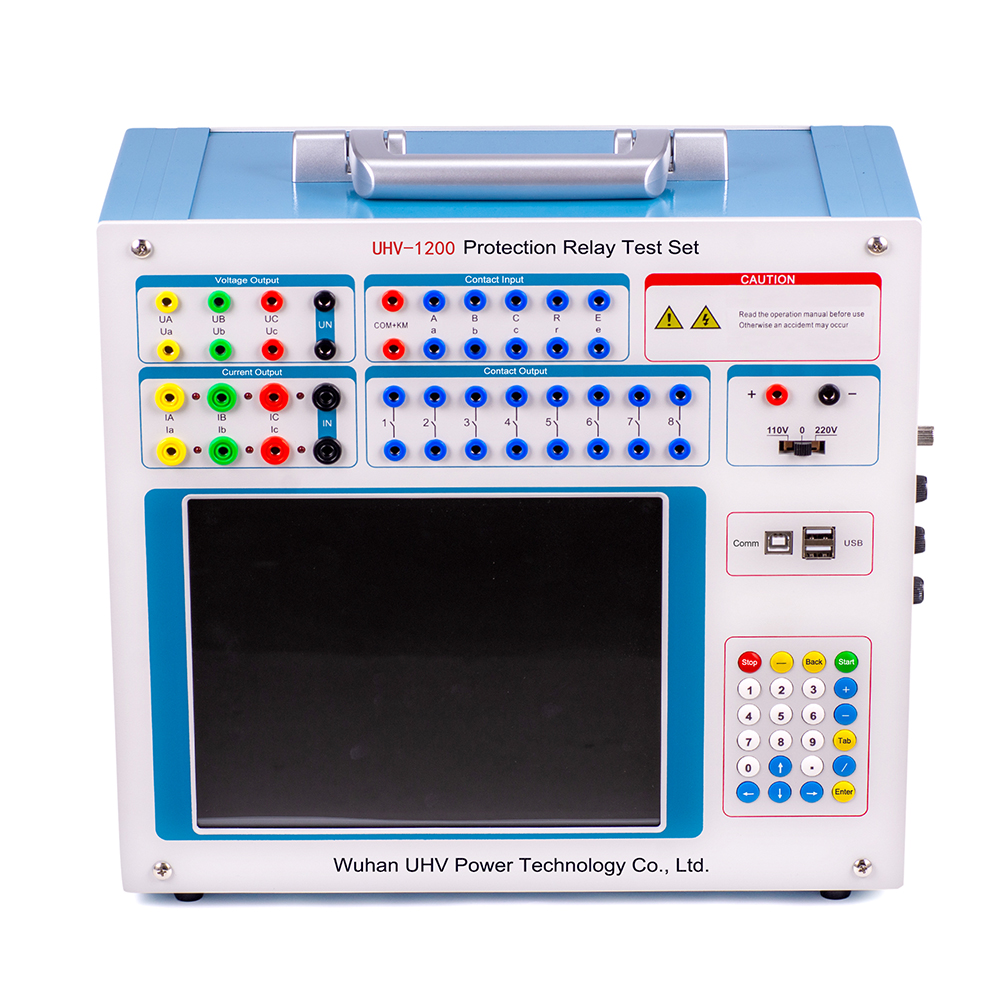

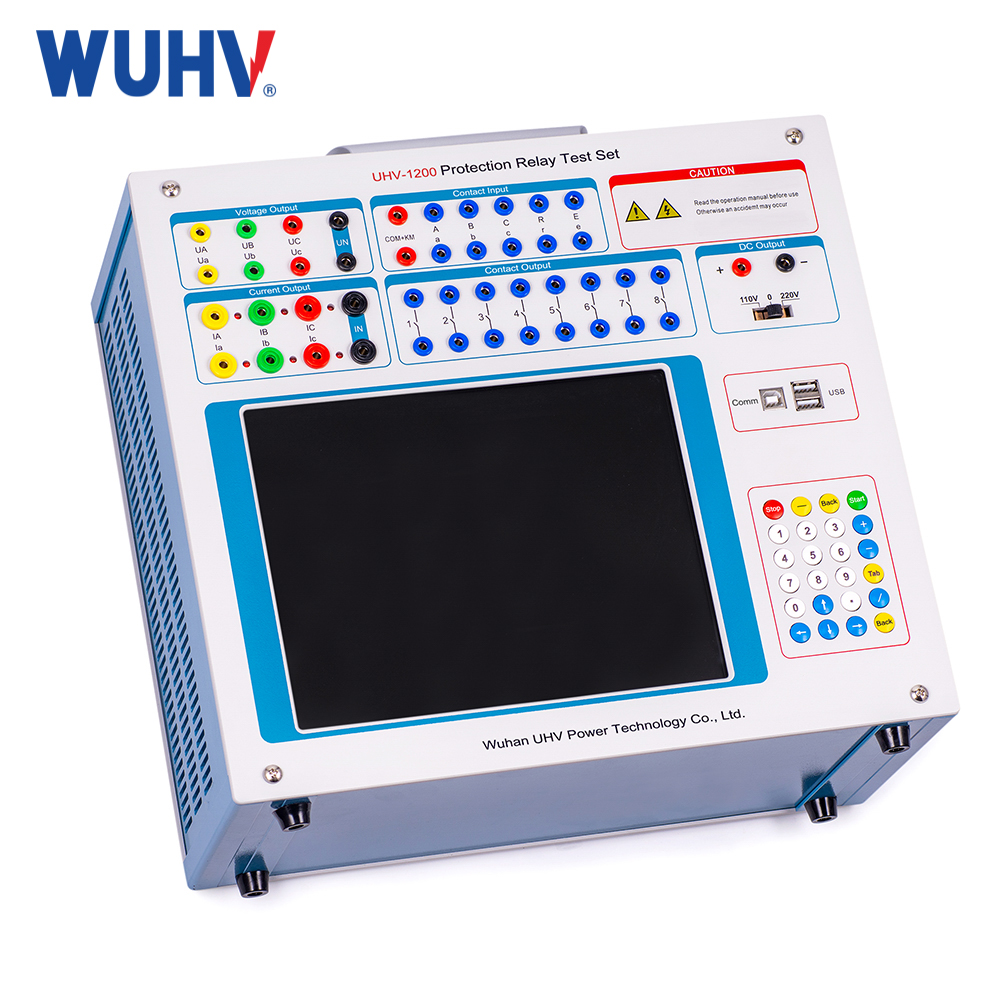

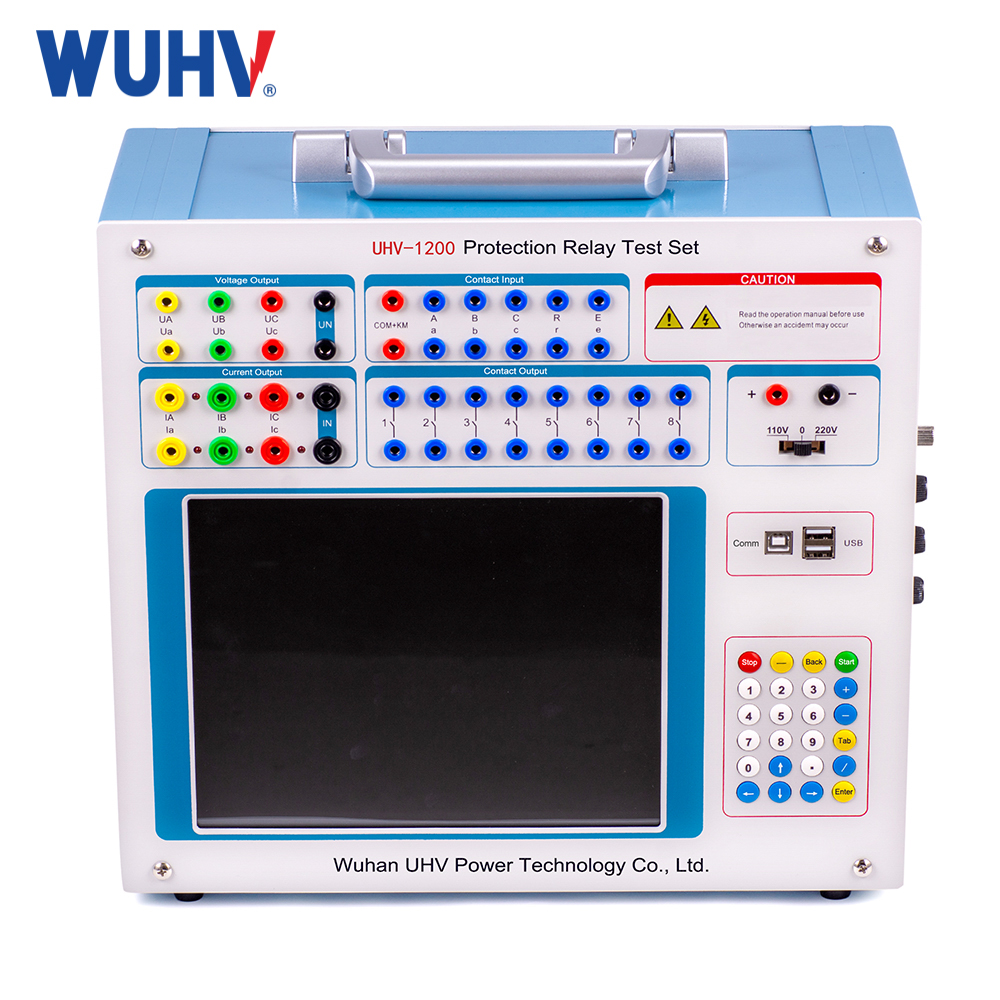

Product Introduction

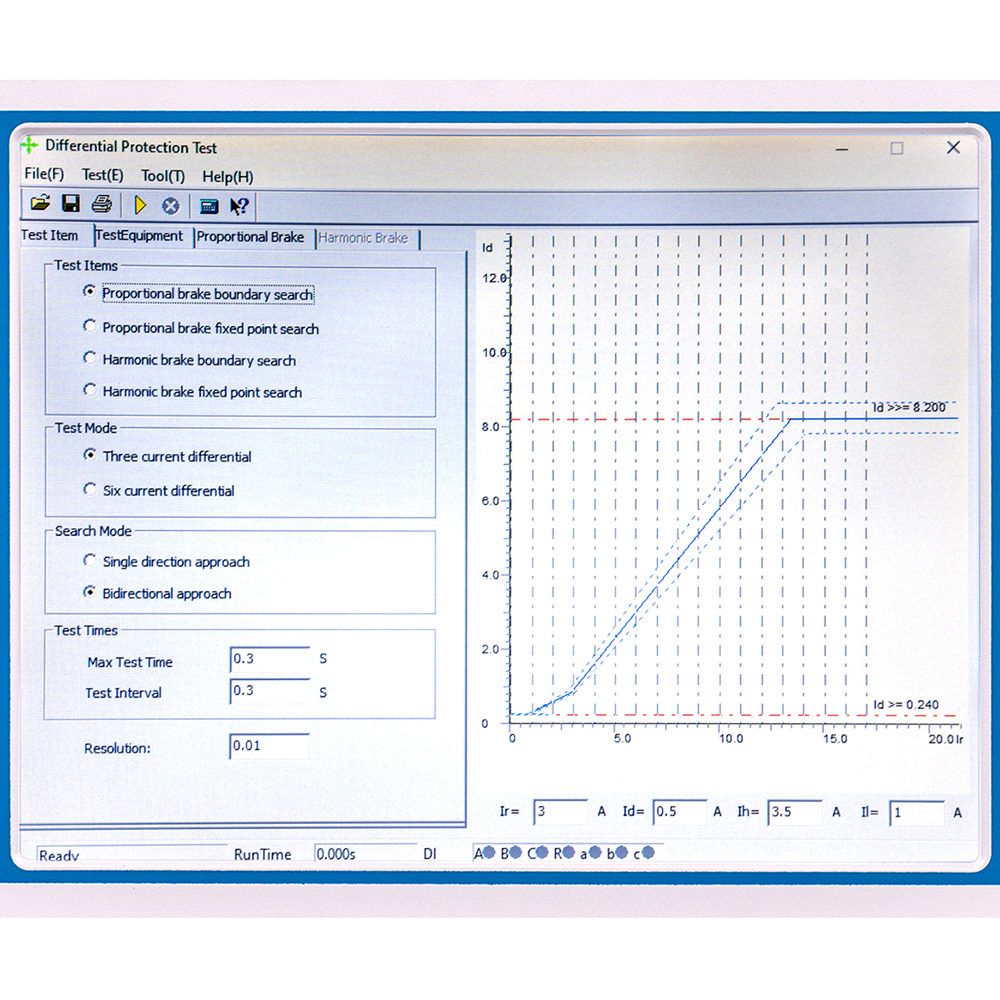

The Six Phase Relay Protection Tester is a new miniaturized microcomputer relay protection tester based on DL/T 624-2023 "Technical Conditions for Microcomputer Relay Protection Test Equipment" issued by the Ministry of Electric Power. It has widely listened to user opinions, summarized the advantages and disadvantages of similar domestic products, and fully utilized modern advanced microelectronics technology and devices. The flexible combination of voltage and current output can reach up to 6-phase voltage and 6-phase current, and can be freely combined to achieve traditional 4-phase voltage, 3-phase current type, 6-phase voltage type, 6-phase and 12-phase output modes. It is not only compatible with various traditional testing methods, but also convenient for differential testing of three-phase transformers and rapid cutting off and preparation of plant power for self injection testing.
Características del producto
1. Versatile Power Output Configuration
Standard 4-phase voltage (120V/phase) & 3-phase current (120A/phase) outputs
Flexible combinations for diverse protection testing requirements
Multifunctional 4th voltage channel (Ux) configurable as 3U0 or custom voltage

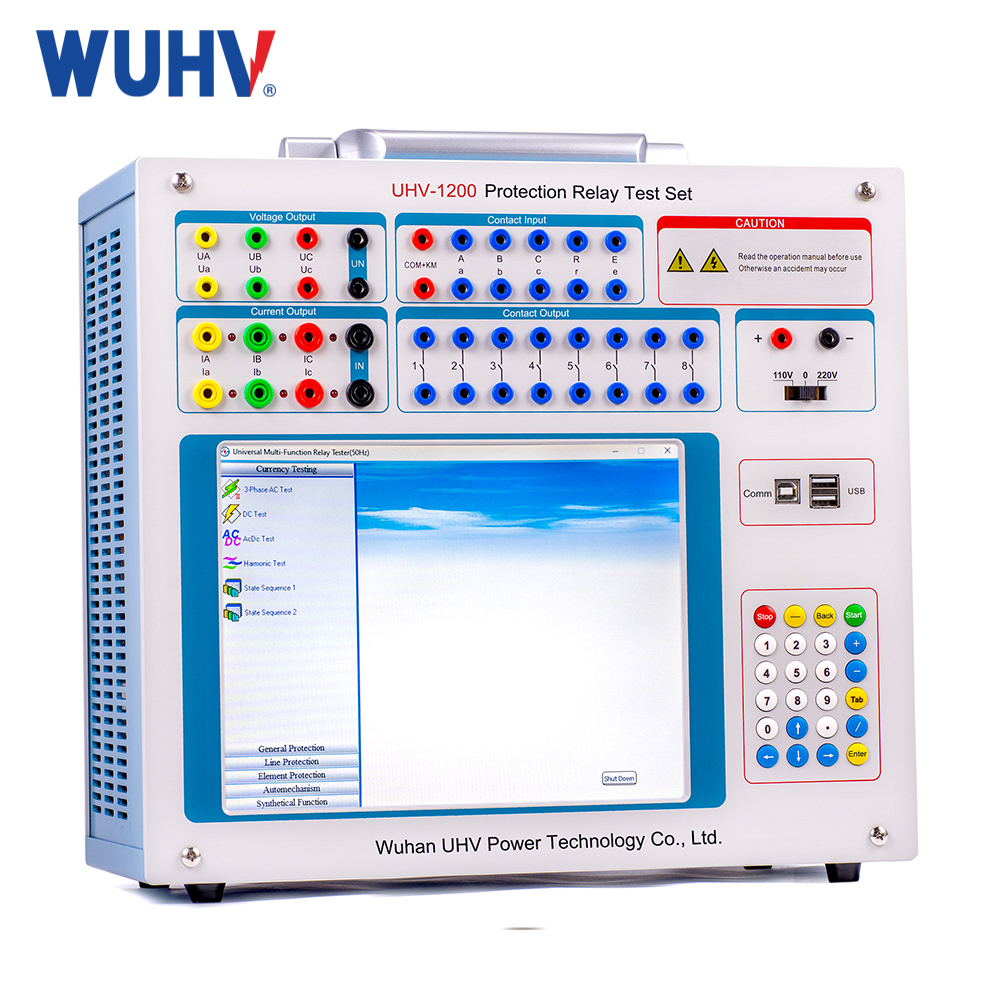

2. Intuitive User Interface
Integrated trackball mouse and optimized keyboard
Large TFT LCD display with Chinese Windows OS
Ready-to-use upon startup with simplified operation
3. Dual Control Modes
Standalone panel operation
External PC control (full feature parity)
Seamless switching between operation modes
4. Advanced Linear Amplification Technology
High-fidelity modular linear amplifiers (non-switching type)
Eliminates high/medium frequency interference
Maintains waveform integrity across all current ranges
5. High-Performance Portable Unit
DSP-controlled output for precise signal generation
Compact, lightweight design (under XX kg)
Fast startup for immediate field testing
6. Comprehensive Test Software
Automated complex verification procedures
Protection setting verification
Fault simulation and replay

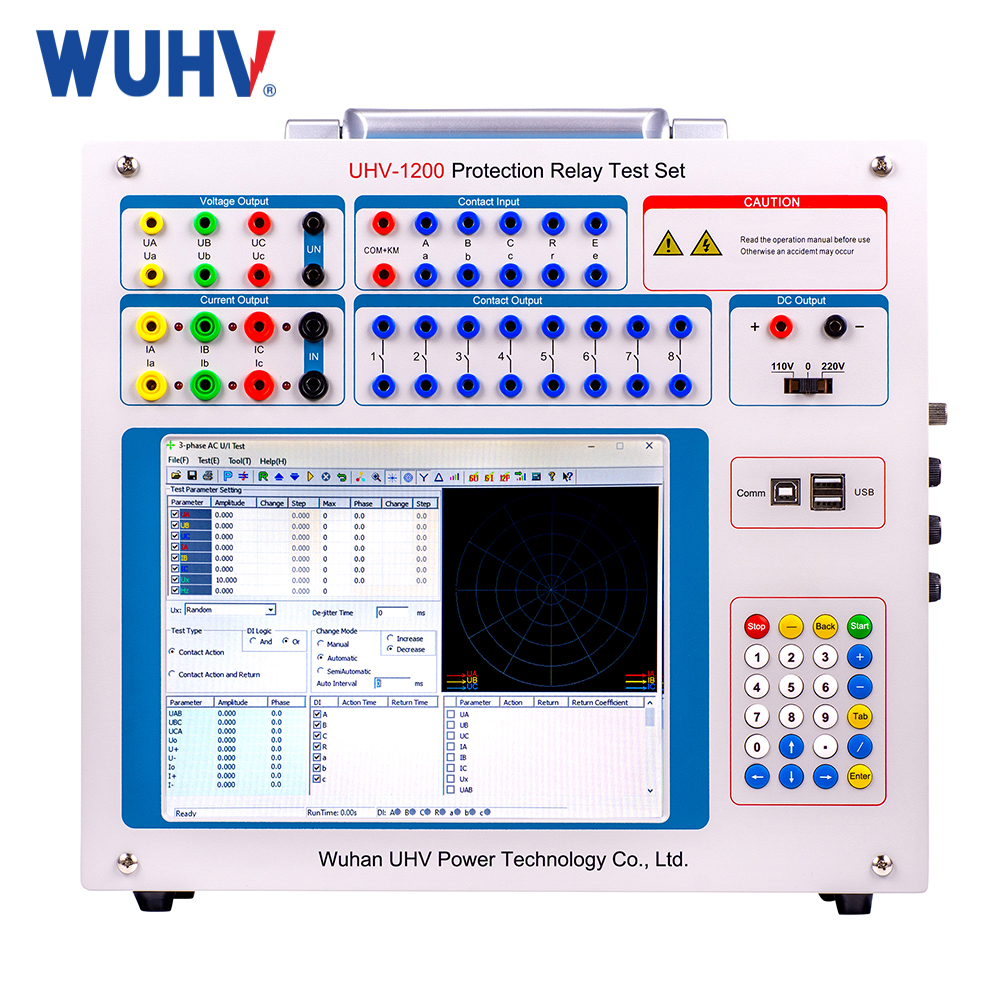

Real-time data logging and vector display
Instant report generation
7. Dual DC Power Outputs
Adjustable 110V/220V DC auxiliary power
Independent power supply for external devices
8. Expanded Connectivity Options
Dual USB and RS232 interfaces
Supports external keyboard/mouse
PC communication capabilities
9. Robust Protection System
Optimized thermal management
Power soft-start circuitry
Comprehensive hardware/software safeguards
Automatic fault diagnosis and lockout
Parametros del producto
| Número de canal actual | Standard 6 phase |
| Número de canal de voltaje | Standard 6 phase |
| Rango de salida de corriente CA | 30A/phase or 180A (six parallel) |
| Rango de salida de corriente CC | 10ADC/phase |
| Rango de salida de voltaje CA | 120VAC/phase |
| Rango de salida de voltaje CC | 160VDC/phase |
Salida de corriente CA
| 6 phase current output per phase (effective value) | 0 ~ 30A output precision 0.2 |
| 3 phase current output per phase (effective value) | 0～60A |
| 6 phase parallel current output (RMS) | 0～180A |
| Phase current long-term allowable working value (RMS) | 10 A |
| Maximum output power of phase current | 300VA |
| 6 phase parallel current maximum output power) | 1000VA |
| 6 Allowable working time for maximum output of phase parallel current | 10 |
| Rango de frecuencia (fundamental) | 0～1000Hz |
| Harmonic frequency | 1～20 |
Salida de corriente CC
| Salida de corriente | 0 ~ ±10A/phase output accuracy 0.5 level |
| Maximum output load voltage | 20V |
Salida de voltaje CA
| Phase voltage output (RMS) | 0 ~ 120V output precision 0.2 |
| Line voltage output (RMS) | 0～240V |
| Phase voltage/line voltage output work | 80VA/100VA |
| Rango de frecuencia (fundamental) | 0～1000Hz |
| Harmonic frequency | 1～20 |
Salida de voltaje CC
| Phase voltage output amplitude | 0 ~ ±160V output accuracy 0.5 |
| Line voltage output amplitude | 0～±320V |
| Phase voltage/line voltage output power | 70VA/140VA |
Switching value
| 8 switch inputs | Null contact 1 ~ 20mA, 24V |
| Potential contact access "0" : 0 ~ +6V; 1: +11 V to +250 V | |
| 4 pairs of switching output | DC：220 V／0.2 A；AC：220 V／0.5 A |
Rango de medición del tiempo
| Rango de medición del tiempo | 0.1ms ～ 9999s |
| Precisión de la medición | 0＜0.1mS |
| Volumen | 375×350×180 (mm3) |
| Unit weight | 17kg |
