Product Introduction

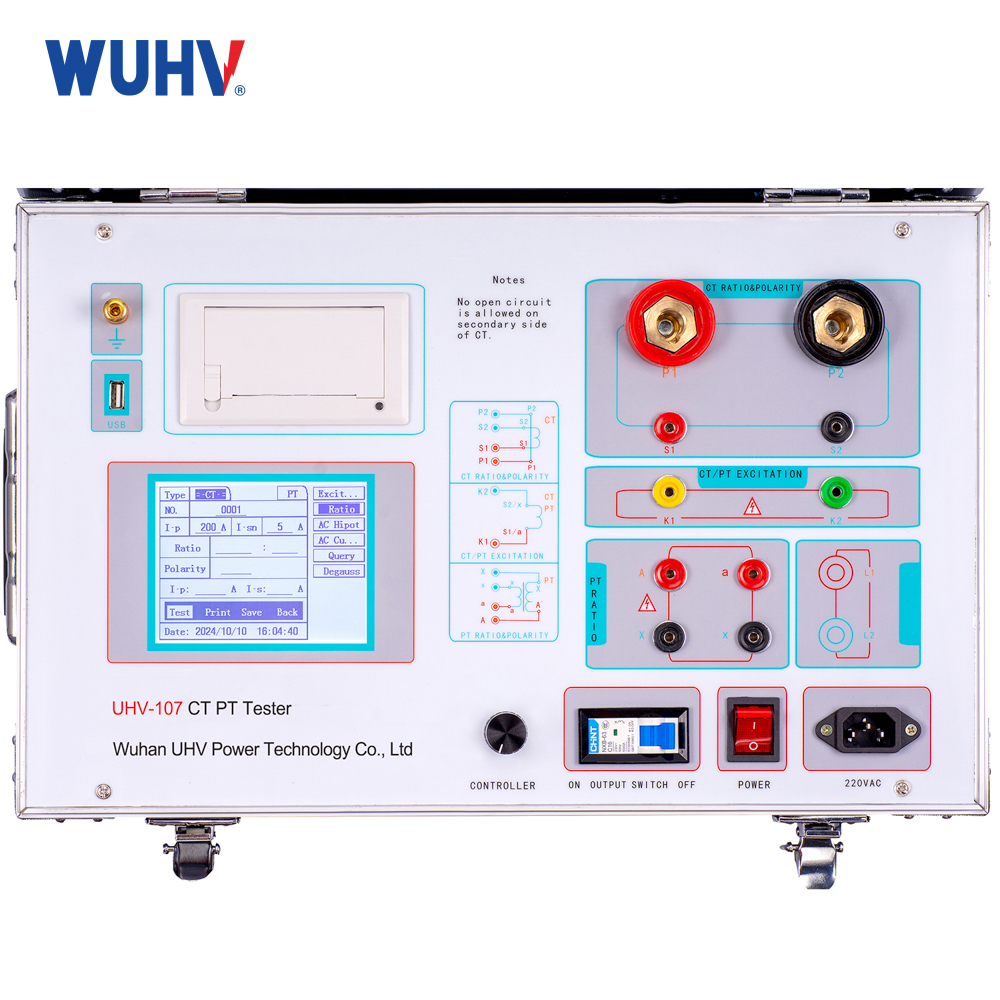

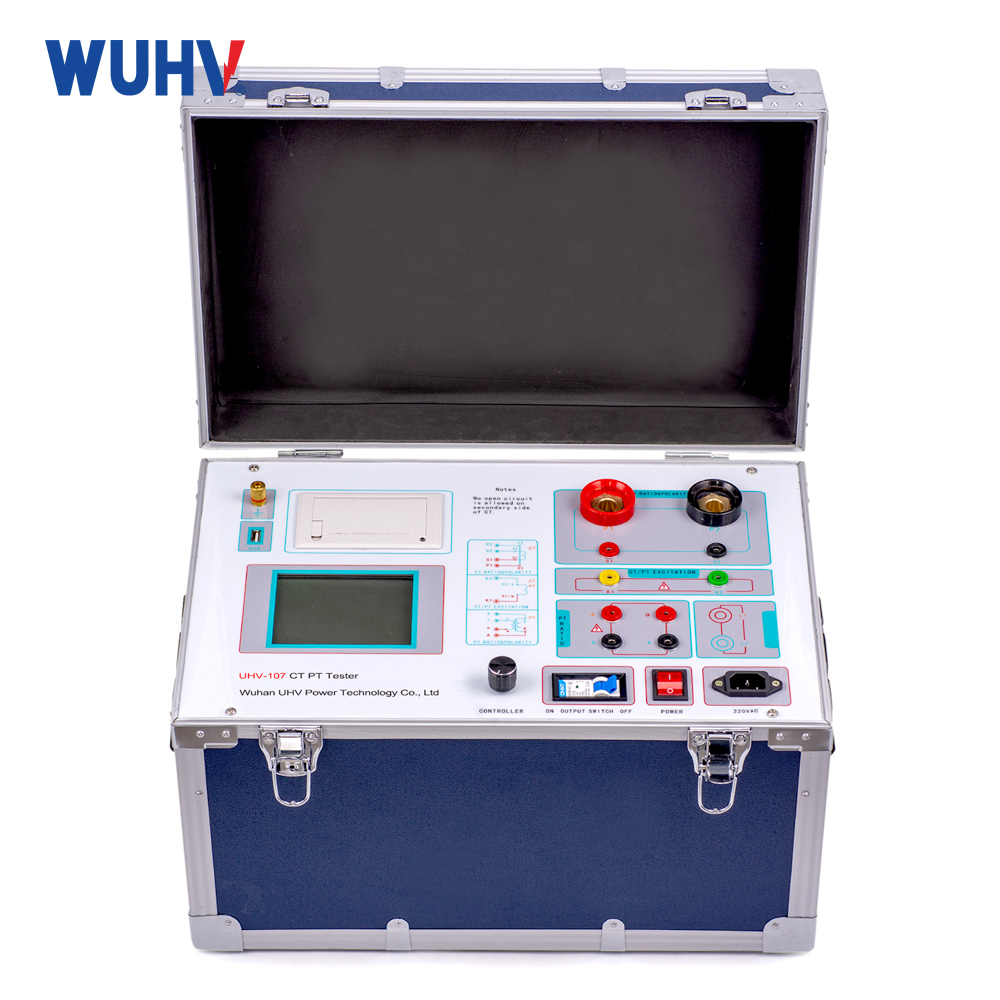

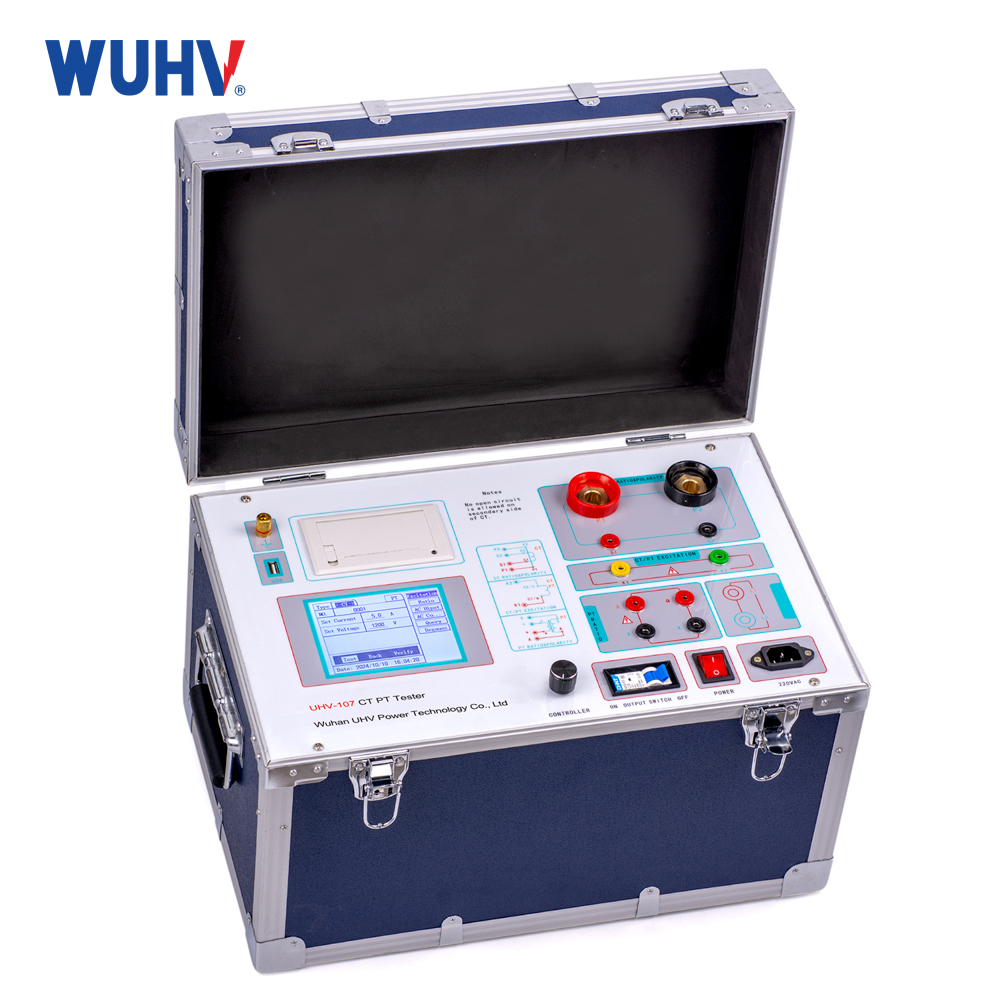

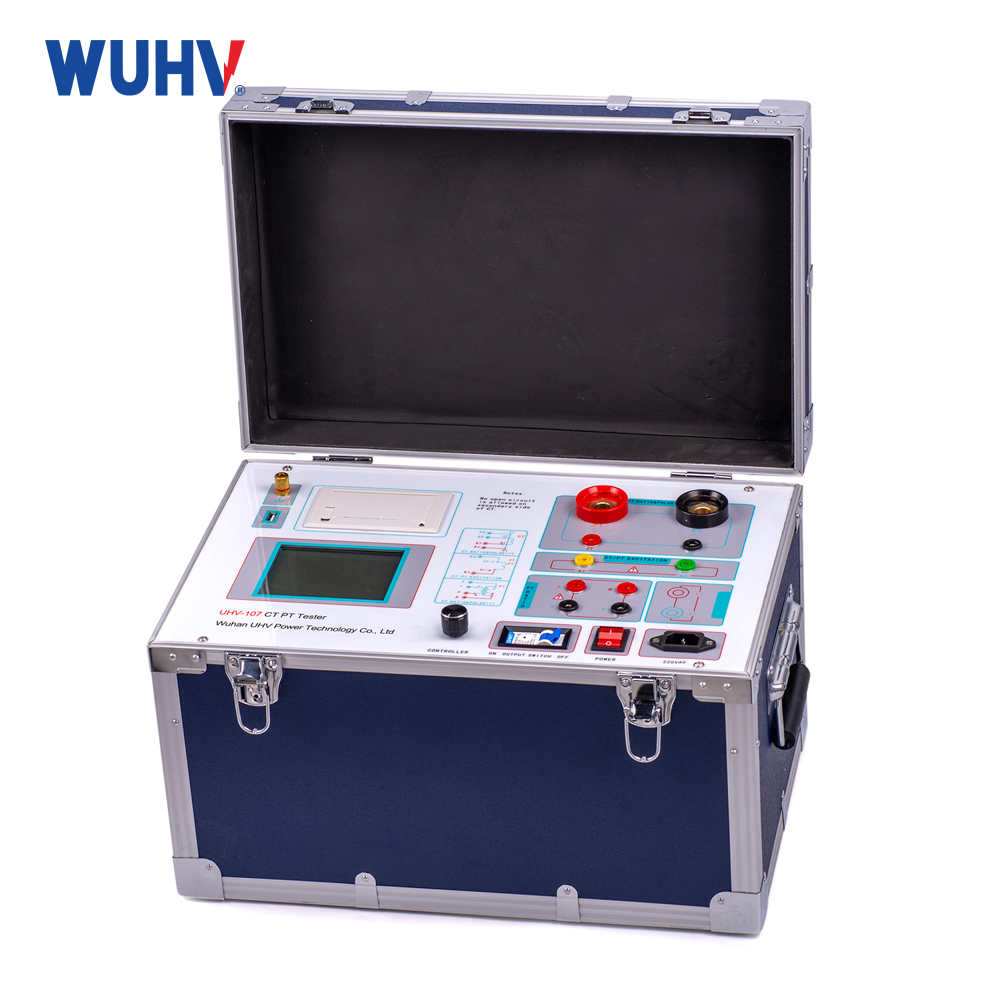

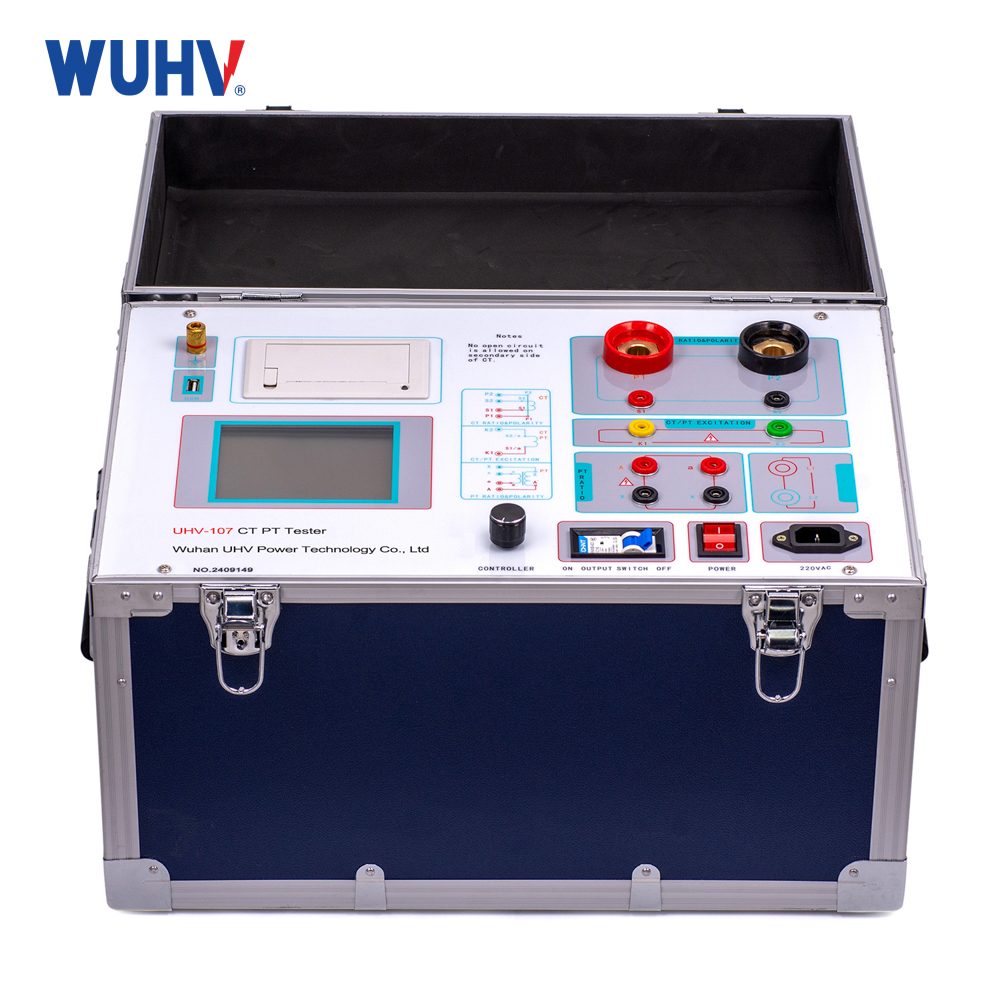

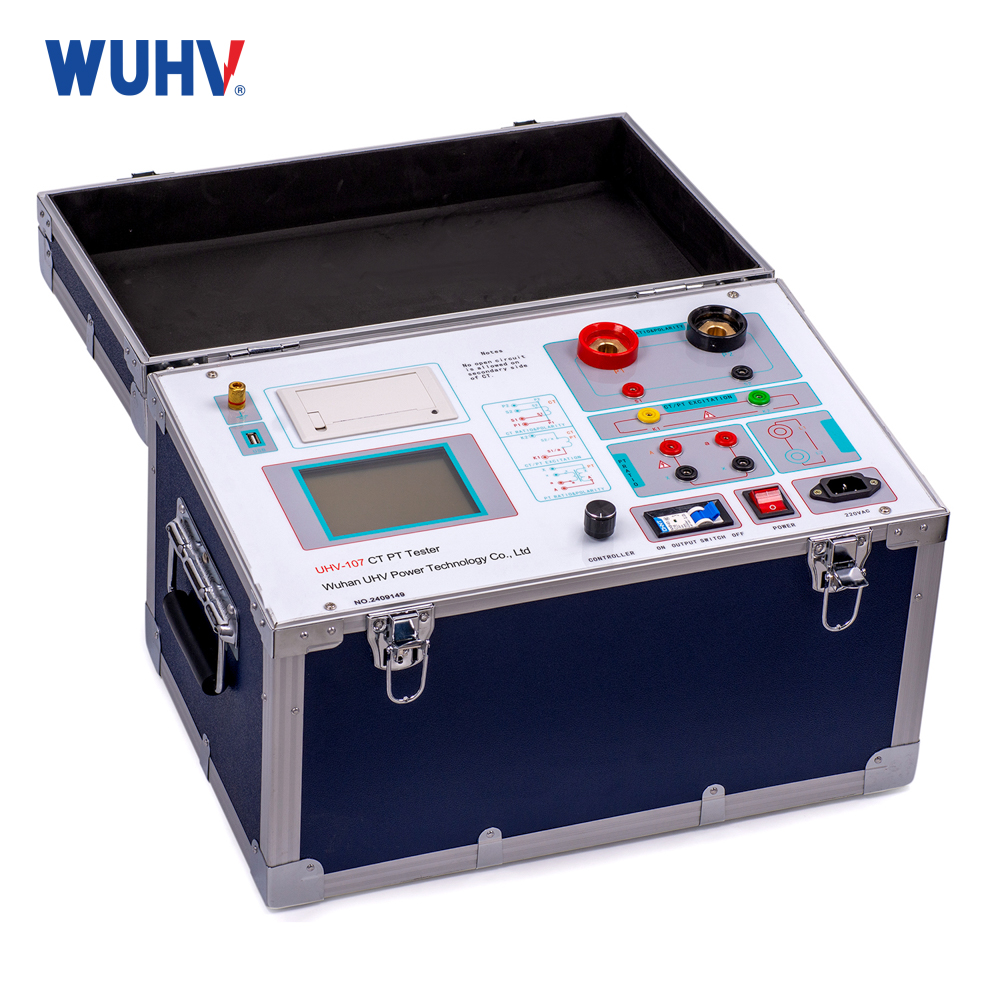

The UHV-107 CT/PT Volt-Ampere Characteristic Tester is engineered for automated testing of Protection-Class and Metering-Class CTs/PTs, supporting both laboratory applications and field testing.
Key Features
1、All-in-One Operation – Performs all tests (excitation curves, ratio, polarity, demag, 5%/10% error curves, secondary burden, AC withstand) without external equipment
2、Automated Analysis – Auto-detects CT/PT excitation knee-point and generates 5%/10% error curves
3、Intuitive Interface – Smart controller with large LCD graphical display for simplified operation
4、On-Site Reporting – Integrated micro-thermal printer for instant results
5、Advanced Data Management
• Stores 3,000 test sets (battery-backed retention)
• USB export to generate Word reports on standard PCs
6、Field-Optimized Design – Lightweight (≤22kg) and compact for enhanced portability
Parametros del producto
The main parameters
| Item | parámetro | |
| Fuente de alimentación de trabajo | AC220V±10% 、50Hz | |
| Devices output | 0~2500V (peak value of 20A) Note: 0 to 5A is the true value, and greater than 5A to 20A is the calculated value | |
| Salida de alta corriente | 0～600A | |
| Precisión de la medición de la excitación | ≤1.0% (0.5%* reading +0.5%* range) | |
| relación TC medición | The scope of | ≤3000A/1A(15000A/5A) |
| precisión | ≤0,5% | |
| PT ratio medición | The scope of | ≤500kV |
| precisión | ≤0,5% | |
| work environment | temperatura | －10℃ ～ 40℃ |
| humedad | ≤90% | |
| altitud | ≤1000m | |
| tamaño | 410 mm × 260 mm × 340 mm | |
| peso | ≤25kg | |
