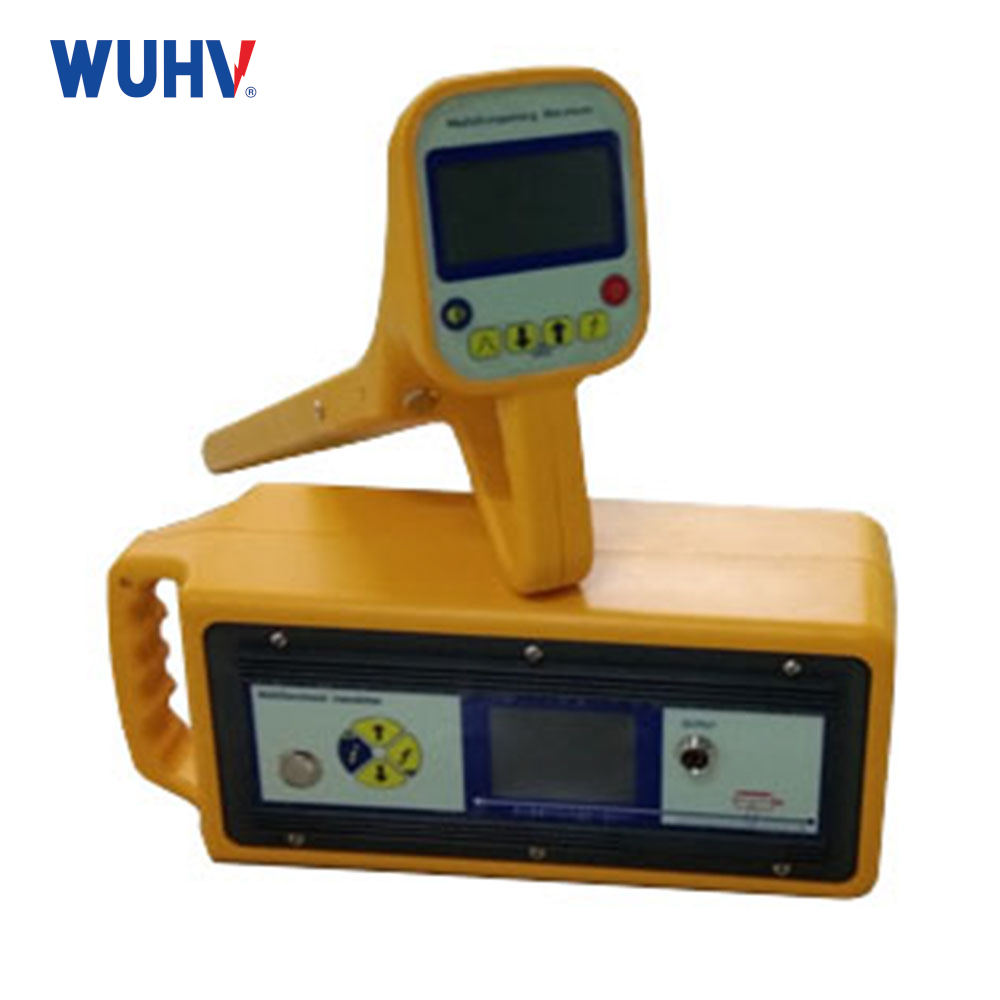

Product Introduction
The UHV-515 Underground Pipeline Detector is an advanced, multi-frequency detection system widely used for locating underground cables, optical fibers and metal pipelines (6m+ depth) across power, telecom, utilities and oil/gas industries. Combining high-power transmission with intelligent signal processing, it delivers precise positioning through automated multi-frequency analysis, making professional-grade detection accessible to all users. Its reliable performance has made it the preferred solution for pipeline construction, inspection and maintenance throughout China's infrastructure sectors.
Características del producto
Display & Power
1、Large Chinese LCD graphic display for clear visualization
2、12W high-power output extends detection range and depth
3、Rechargeable battery operation (optional dry batteries) for field portability
Detection Technology
1、Multi-frequency selection for versatile applications
2、Professional narrowband filtering for superior anti-interference
3、Automatic impedance matching requires no manual adjustment
4、Multi-antenna system directly displays buried cable depth
Measurement Capabilities
1、Current measurement for target pipeline identification
2、Built-in ohmmeter for loop resistance testing
3、Multimeter functions (continuity and insulation testing)
4、Capable of locating 50Hz live cable paths
Performance Advantages
1、Optimized power management ensures extended operation
2、Cost-effective solution for long detection sessions
3、Specialized for deep buried and long-distance pipeline detection
Parametros del producto

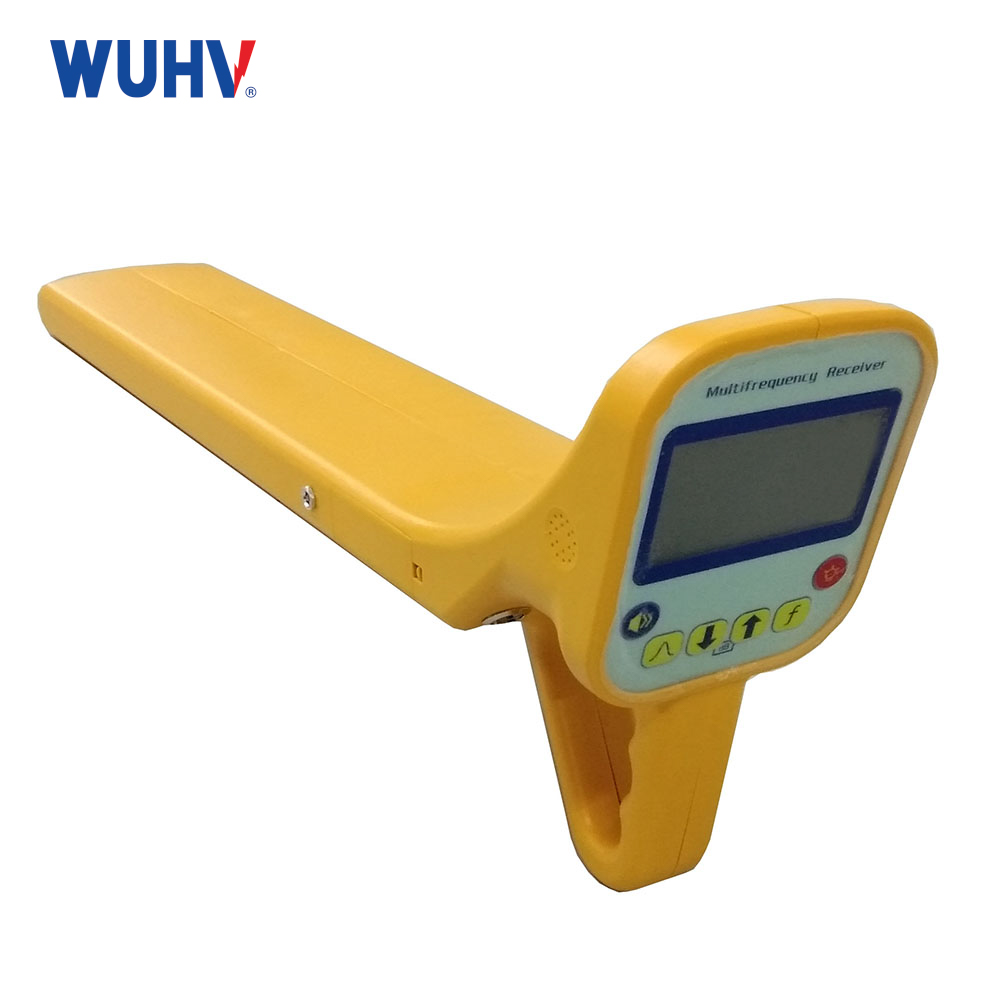

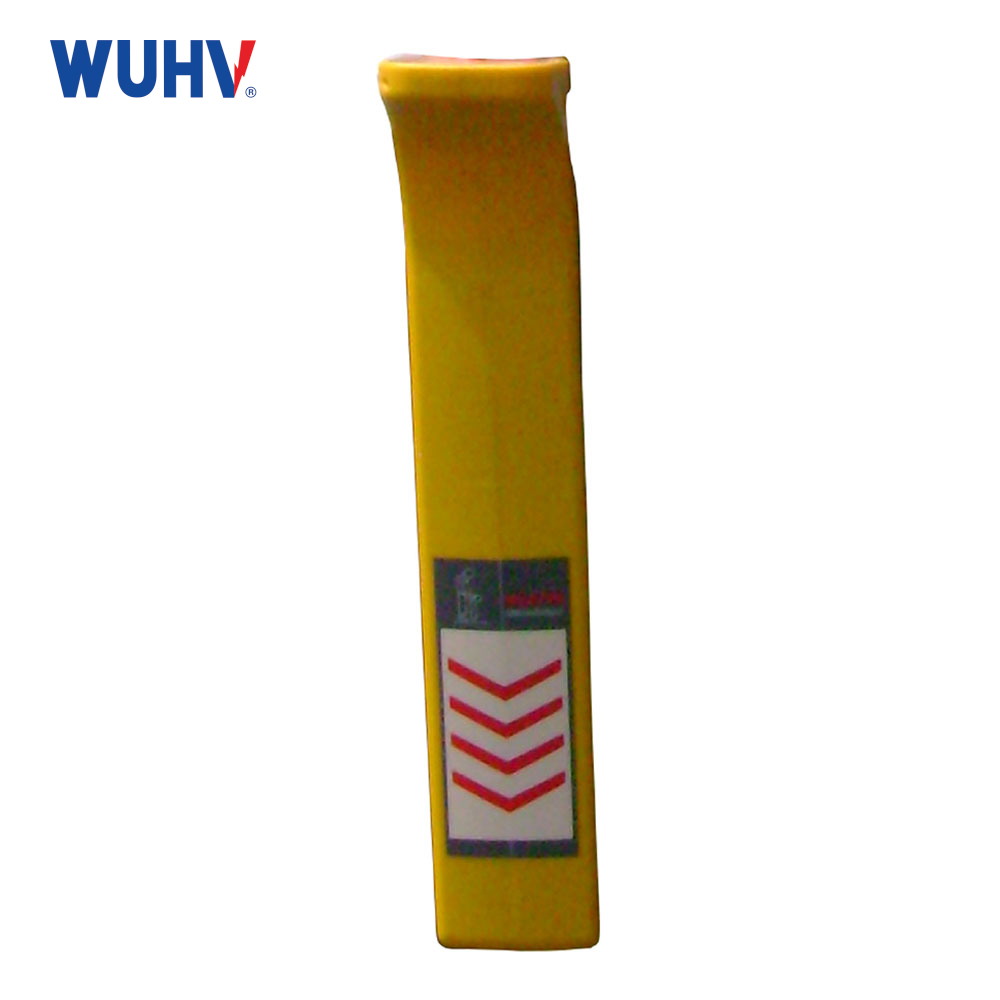

Receiver
1、Active frequency: Receives 8 different frequencies, namely 50Hz, 577Hz, 815Hz, 8kHz, 33kHz, 65.5kHz, 82kHz, 133kHz
2、Depth range: 0～6M
3、Current range: Direct reading current, range 000~999mA
4、Receive mode: Wide peak mode, valley mode, external device mode
5、Detection accuracy: Detection accuracy: 0~3m is 5% of the buried depth; 3~6m is 10% of the buried depth
6、Signal strength indication: LCD display, sound prompt
7、Signal interface: The three interfaces of digital size, raster length and sound urgency indicate signal strength at the same time, and the dynamic range is 0~999, which can indicate the maximum signal strength
8、Gain dynamic range: Automatic adjustment and manual adjustment, dynamic range 0~100dB
9、Receive mode: Wide peak mode, valley mode, external device mode Digital signal and battery display, operating frequency, depth, volume, left/right direction display
10、LCD display: LCD display, graphic display, LCD screen backlight brightness can be manually switched on/off, using 240×128 dot matrix 3.6 inch black and white LCD screen, LCD screen backlight controllable
11、Battery: Lithium rechargeable battery, more than 12 hours
12、Overheating and overcurrent: Automatic protection
13、Operating temperature: -20℃~70℃
14、Volume: 620×110 ×2300mm
15、Weight: 1.6kg

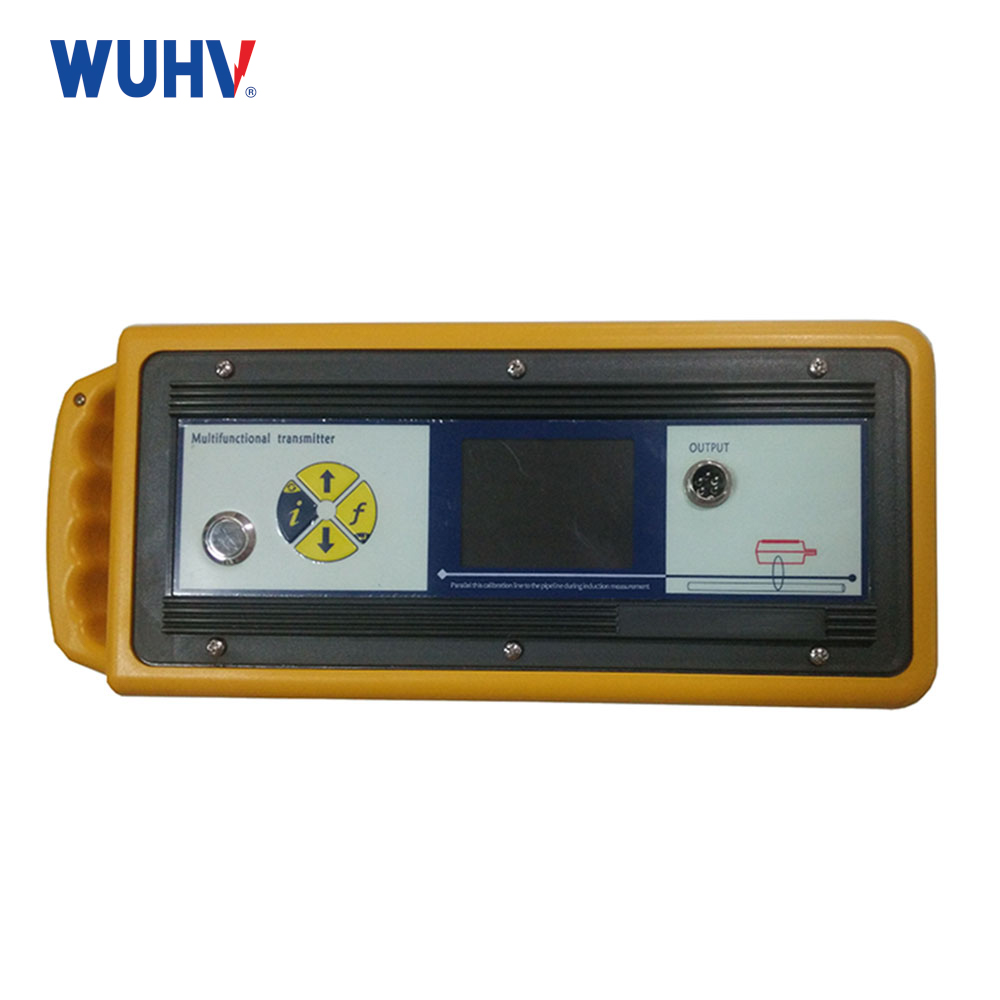

Launcher
1、Output frequency: 577Hz、815Hz、8kHz、33kHz、65.5kHz、82kHz、133kHz
2、Output mode: Induction mode, direct connection mode, clamp mode
3、Output power: 10W
4、Output voltage: 60V
5、Maximum output current: 1A
6、Power supply: Dual power supply, lithium battery pack (energy saving and environmental protection)
7、Overheating and overcurrent: Automatic protection
8、Battery status: Continuous display
9、Continuous working hours: 1W≥12 hours; 8 hours at 5W≥ 8 hours; ≥5 hours at 10W
10、Ambient temperature:-20℃-50℃
