Product parameters:

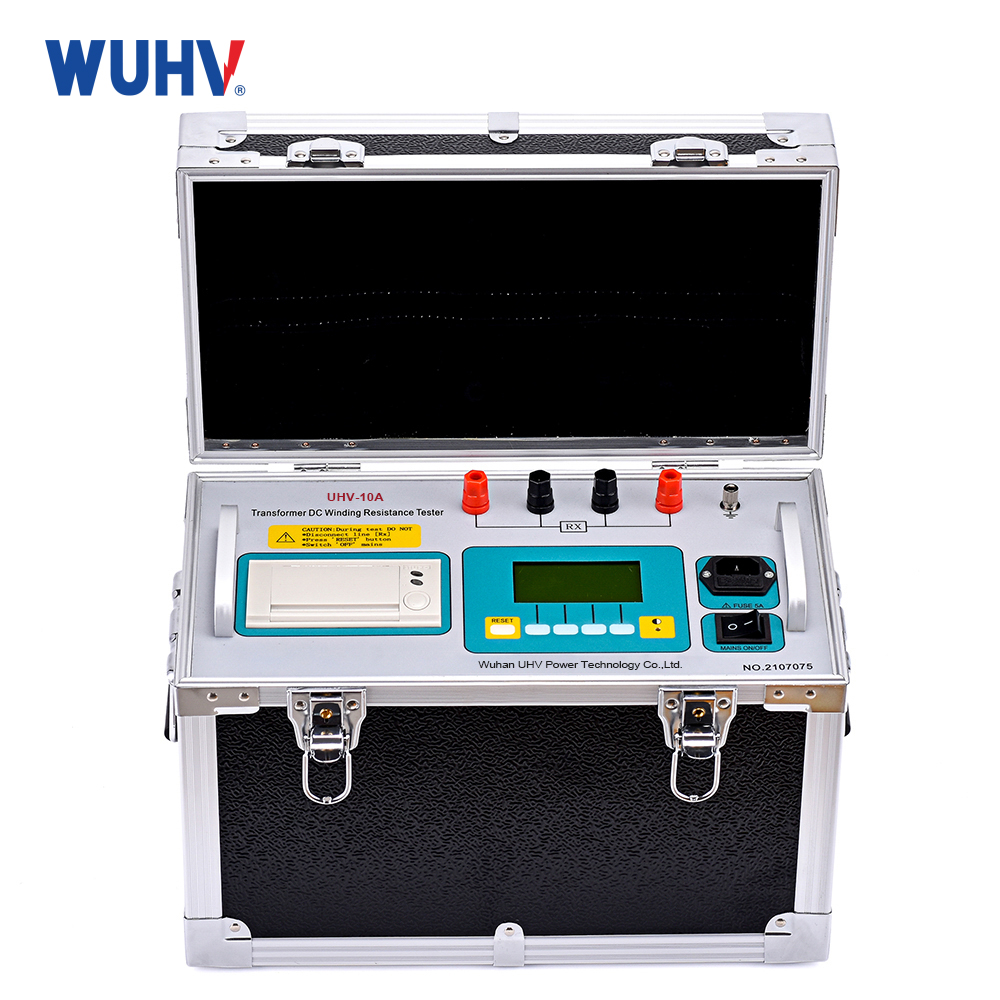

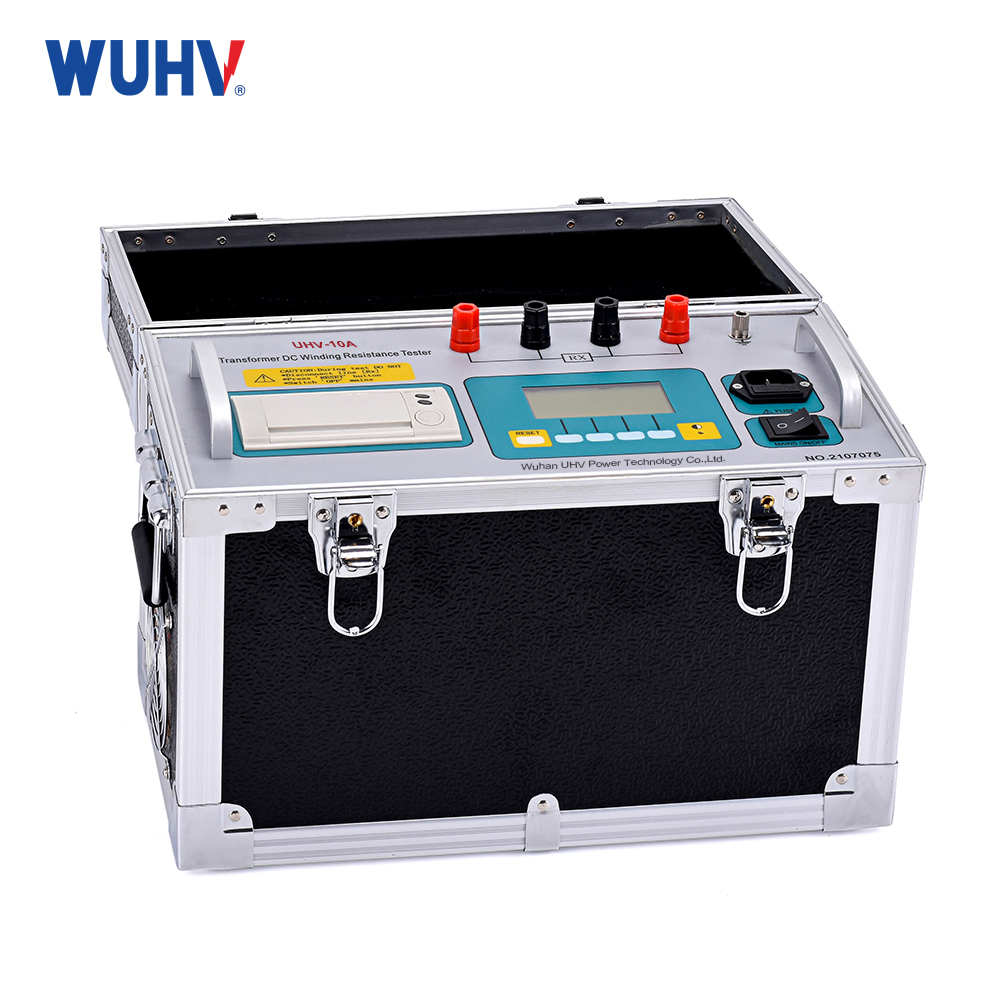

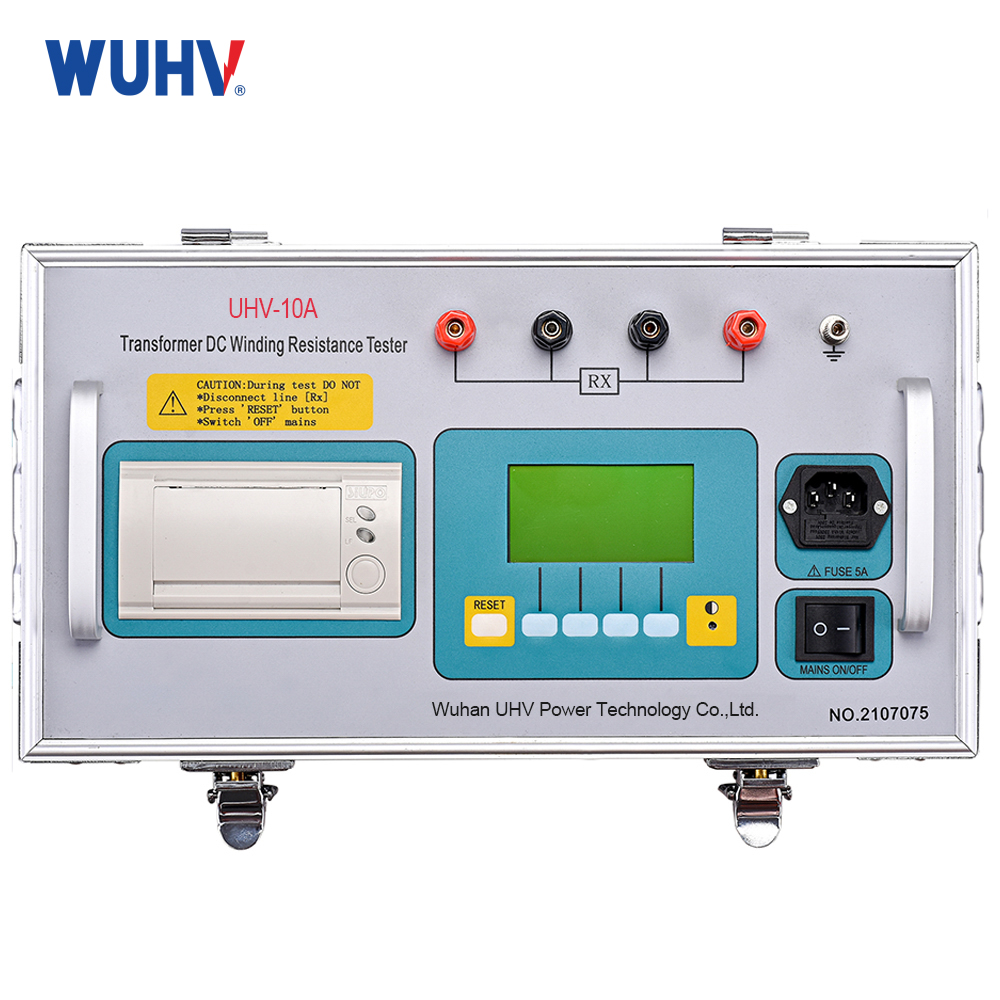

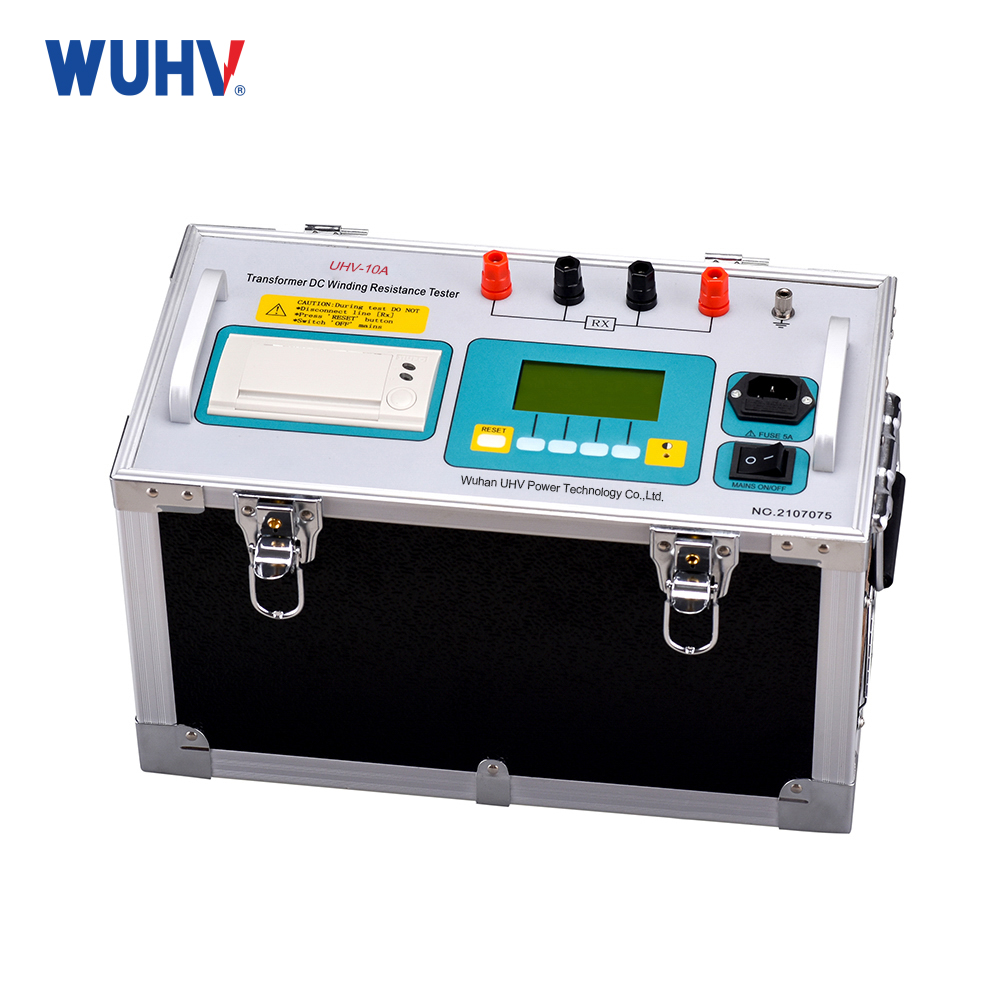

The DC resistance rapid tester developed by our company employs a novel power supply technology. Key attributes include performance stability, rapid measurement capability, compact dimensions, user-friendliness, high measurement accuracy, and superior data repeatability. This instrument is ideally suited for DC resistance measurements in transformer windings and high-power inductive apparatus.
Technical parameters:
Project | Project | Notes |
Corriente de prueba | 1mA 10mA 1A 5A 10A | |
Rango de medición
| 1mA：10Ω~20KΩ | |
10mA：1Ω~2KΩ | ||
1A：10mΩ~20Ω | ||
5A：1mΩ~4Ω | ||
10A：1mΩ~2Ω | ||
Precisión de la medición | ± (0.2% full scale ± 2 words) | |
Almacenamiento de datos | 255 of them | |
Mostrar | Liquid crystal display | The resistance is displayed as 4 1/2 bits |
Maximum resolution | 0,1 mΩ | |
Fuente de alimentación | AC 220V±22V，50Hz±2 Hz | Insurance pipe 5A |
Maximum power consumption | 300W | When the test current is 10A |
Work environment | Environmental temperature: 0 ° C to 40 ° C Relative humidity: ≤ 80% | |
Volumen | 400x200x280mm3 | |
Peso | 9 kilos | Without accessories |
Característica:
Compact & lightweight design
Intuitive full-English menu operation
Rapid measurements with precise, stable results
Integrated auto-discharge with visual indication (enhances safety, prevents operator error)
