Product Introduction

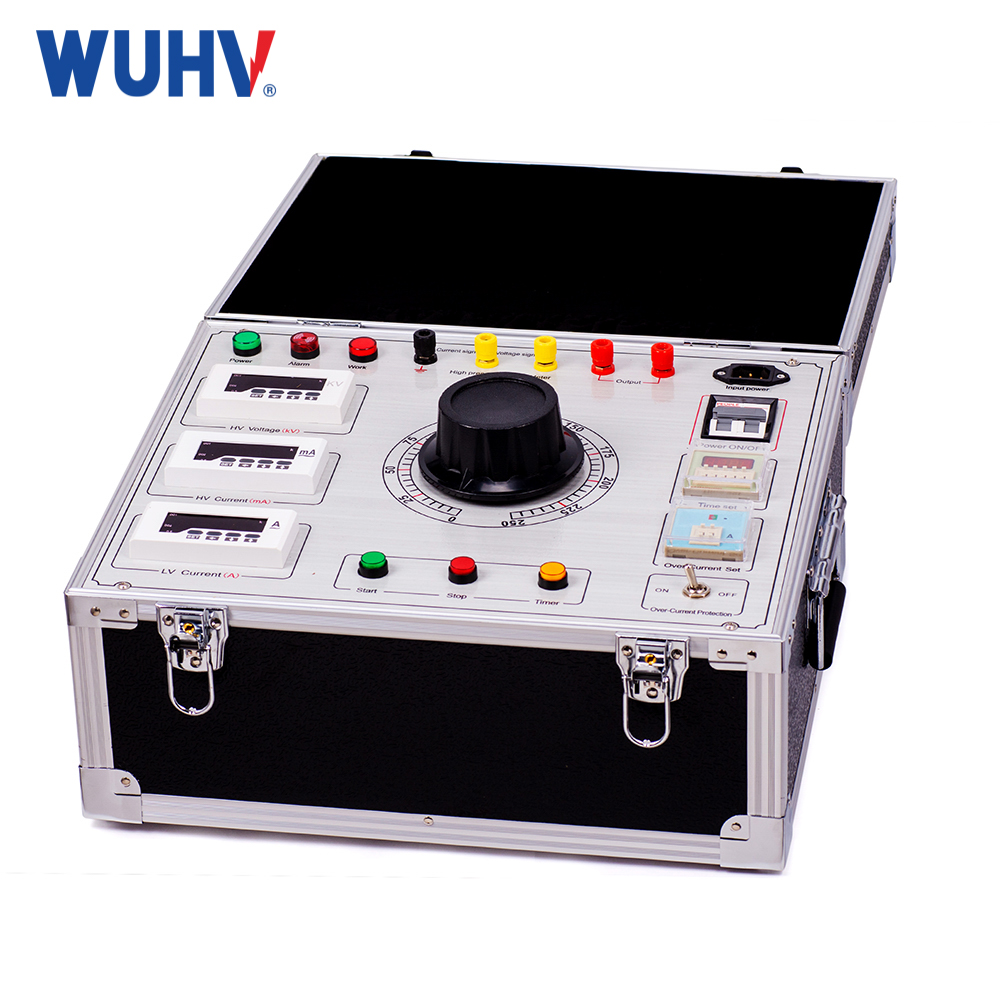

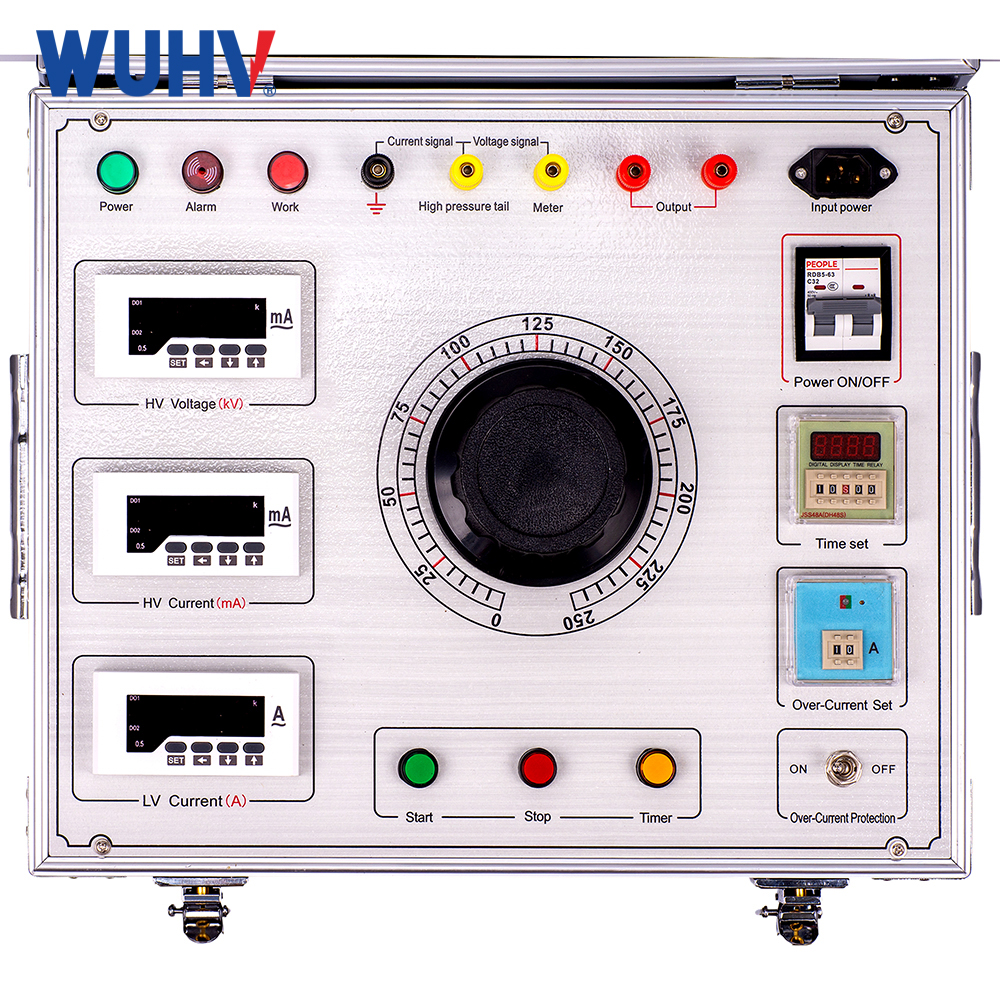

The YDQ Digital Display 5kVA AC/DC Hipot Tester is a modern, microprocessor-controlled instrument designed for precise dielectric withstand testing on electrical equipment such as transformers and cables. Its key advantages include a robust 5kVA capacity for testing capacitive loads, a clear digital interface for accurate voltage and leakage current readings, programmable test sequences for automated operation, and data logging capabilities for result documentation and compliance reporting. This combination of power, precision, and automation makes it ideal for both quality control in manufacturing and maintenance testing in electrical utilities.
Parámetros técnicos
Clase de voltaje | 10Kv-300kV |
Rango de capacidad | 1-500KVA |
voltaje de impedancia | ≤8% |
Corriente sin carga | ＜7% |
Tipo de producto | CA, CA y CC, cascada CA, cascada CA CC. |
Especificaciones principales
Modelo | Capacidad (kVA) | Alto voltaje (kV) | corriente de alta tensión (mamá) | Voltaje de entrada | Relación | aumento de temperatura ℃(30 minutos) | |
Voltaje (V) | Corriente (A) | ||||||
YDQ-1.5/50 | 1.5 | 50 | 30 | 200 | 7.5 | 500 | 10 |
YDQ-3/50 | 3 | 50 | 60 | 200 | 15 | 500 | 10 |
YDQ-5/50 | 5 | 50 | 100 | 200 | 25 | 500 | 10 |
YDQ-10/50 | 10 | 50 | 200 | 200 | 50 | 500 | 10 |
YDQ-20/50 | 20 | 50 | 400 | 400 | 53 | 500 | 10 |
YDQ-30/50 | 30 | 50 | 600 | 400 | 79 | 500 | 10 |
YDQ-50/50 | 50 | 50 | 1000 | 400 | 12 | 500 | 10 |
YDQ-5/100 | 5 | 100 | 50 | 200 | 25 | 1000 | 10 |
YDQ-10/100 | 10 | 100 | 100 | 200 | 50 | 1000 | 10 |
YDQ-20/100 | 20 | 100 | 200 | 400 | 53 | 1000 | 10 |
YDQ-30/100 | 30 | 100 | 300 | 400 | 79 | 1000 | 10 |
YDQ-50/100 | 50 | 100 | 500 | 400 | 132 | 1000 | 10 |
YDQ-20/150 | 20 | 150 | 133 | 400 | 53 | 1500 | 10 |
YDQ-30/150 | 30 | 150 | 200 | 400 | 80 | 1500 | 10 |
YDQ-50/150 | 50 | 150 | 333 | 400 | 132 | 1500 | 10 |
YDQ-100/150 | 100 | 150 | 667 | 400 | 263 | 1500 | 10 |
YDQ-50/200 | 50 | 200 | 250 | 400 | 132 | 2000 | 10 |
YDQ-100/200 | 100 | 200 | 500 | 400 | 263 | 2000 | 10 |
YDQ-150/200 | 150 | 200 | 750 | 400 | 395 | 2000 | 10 |
YDQ-200/200 | 200 | 200 | 1000 | 400 | 526 | 2000 | 10 |
YDQ-300/200 | 300 | 200 | 1500 | 400 | 790 | 2000 | 10 |
YDQ-50/300 | 50 | 300 | 170 | 400 | 132 | 3000 | 10 |
YDQ-100/300 | 100 | 300 | 333 | 400 | 263 | 3000 | 10 |
YDQ-150/300 | 150 | 300 | 500 | 400 | 395 | 3000 | 10 |
YDQ-200/300 | 200 | 300 | 667 | 400 | 526 | 3000 | 10 |
YDQ-300/300 | 300 | 300 | 1000 | 400 | 790 | 3000 | 10 |

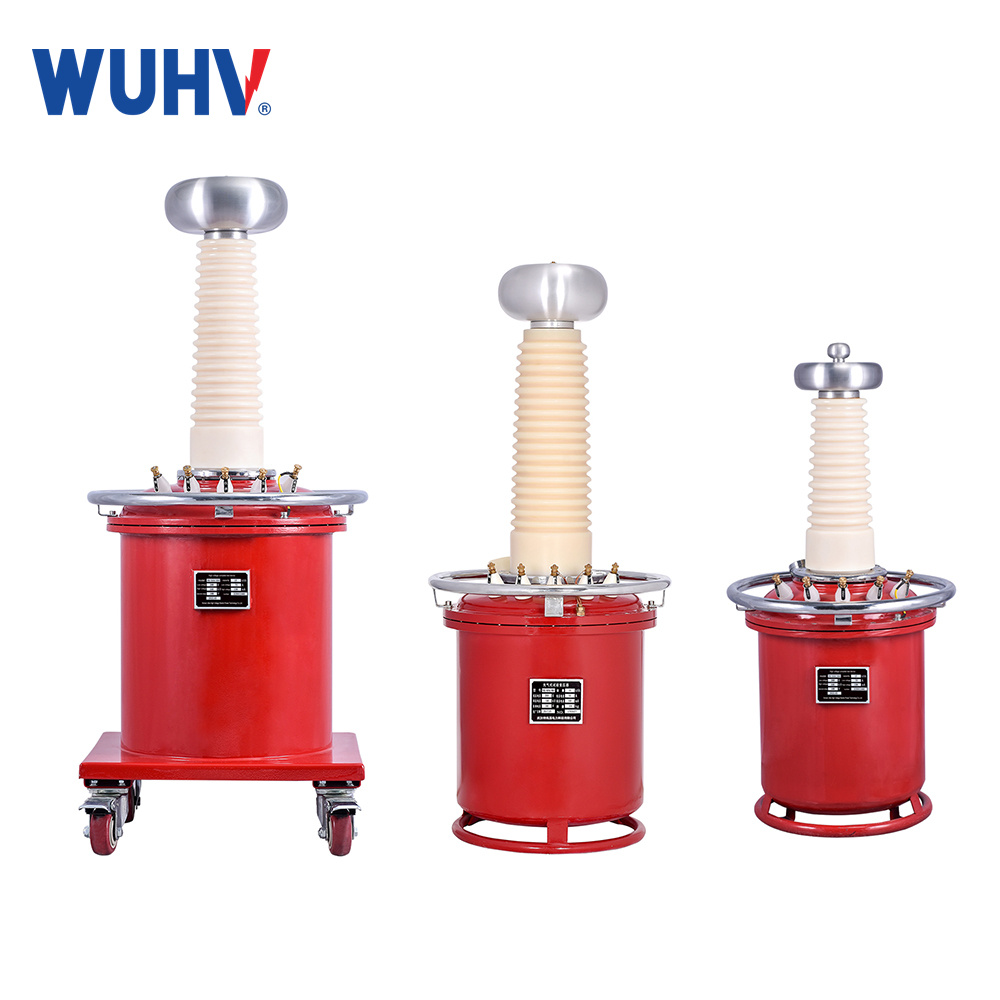

Product Features:
1. Small size, light weight.
2. Clean, no oil, maintenance-free.
3. Free from harsh climate impacts, site handling still can do the test.
4. Dielectric strength significantly higher than oil type, corona minimal.
