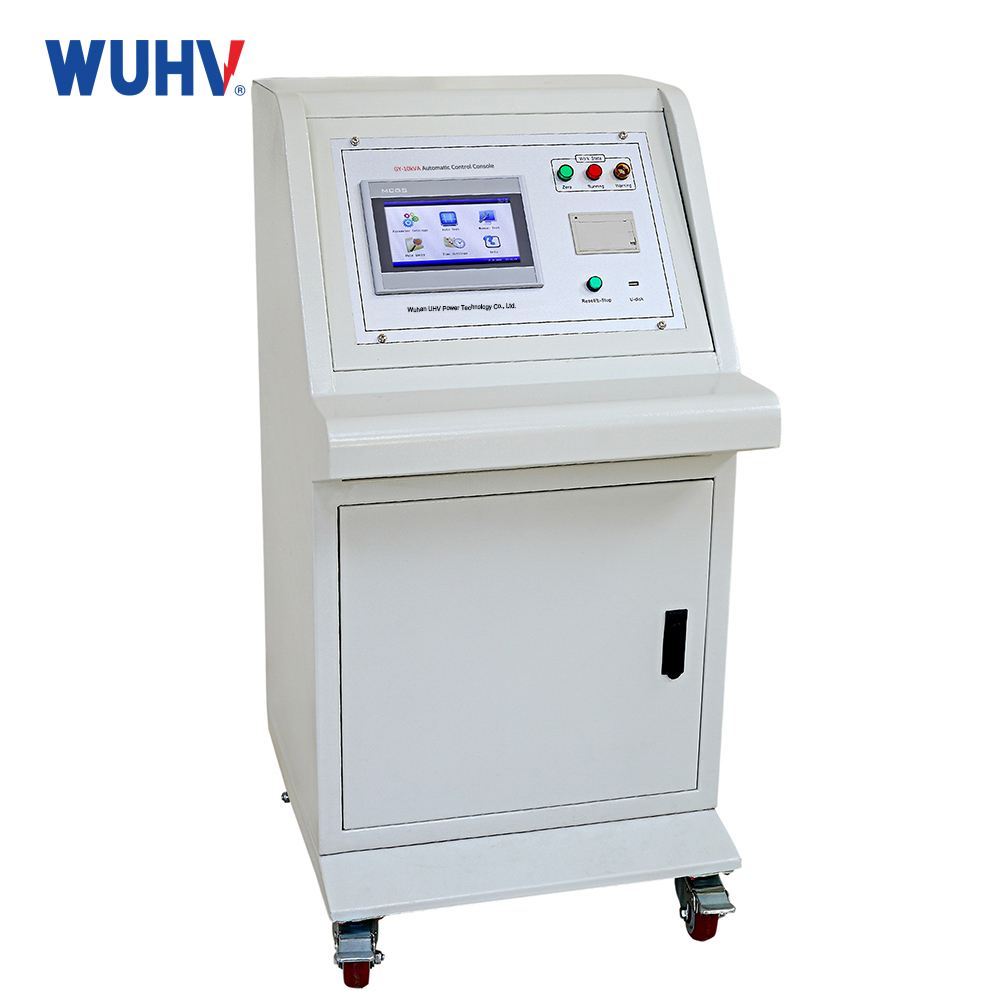

Product parameters:
This fully automated control console performs power frequency withstand voltage tests on electrical products, components, and insulation materials at specified voltages. It evaluates insulation integrity, identifies defects, and quantifies overvoltage tolerance to assess product safety compliance.
Technical parameters:
Capacidad nominal | 10~300kVA |
Low-tension current | 0～790A |
VLDOTM | 0～250V；0～430V |
Instrument voltage | 0～100V |
Console voltage measurement accuracy | 0.5%FS±3character |
Console current measurement accuracy | 0.5%FS±3character |
Precisión de medición del sistema | 1.5%FS+3character |
The length of the time | 0～3 hours 59 minutes 59seconds |
Supply voltage | AC220V±10%；AC380V±10%；50Hz±1Hz |
Característica:

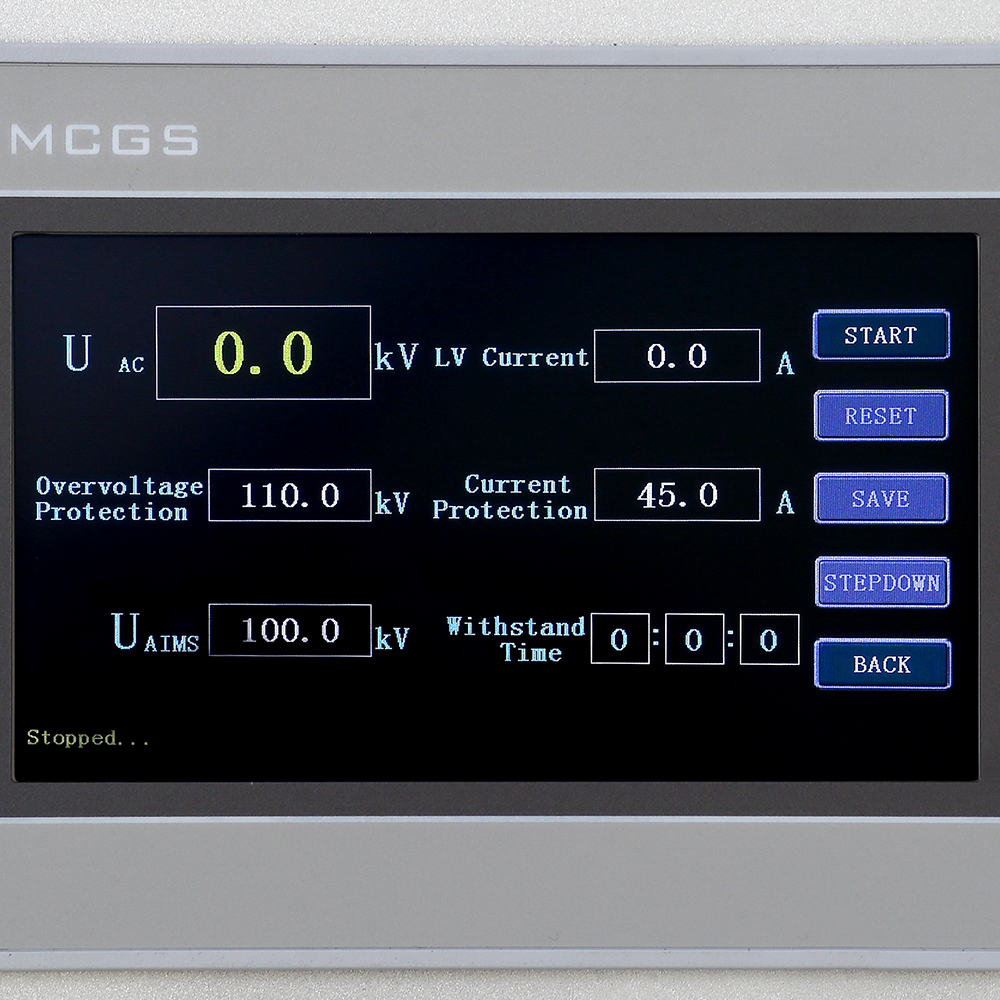

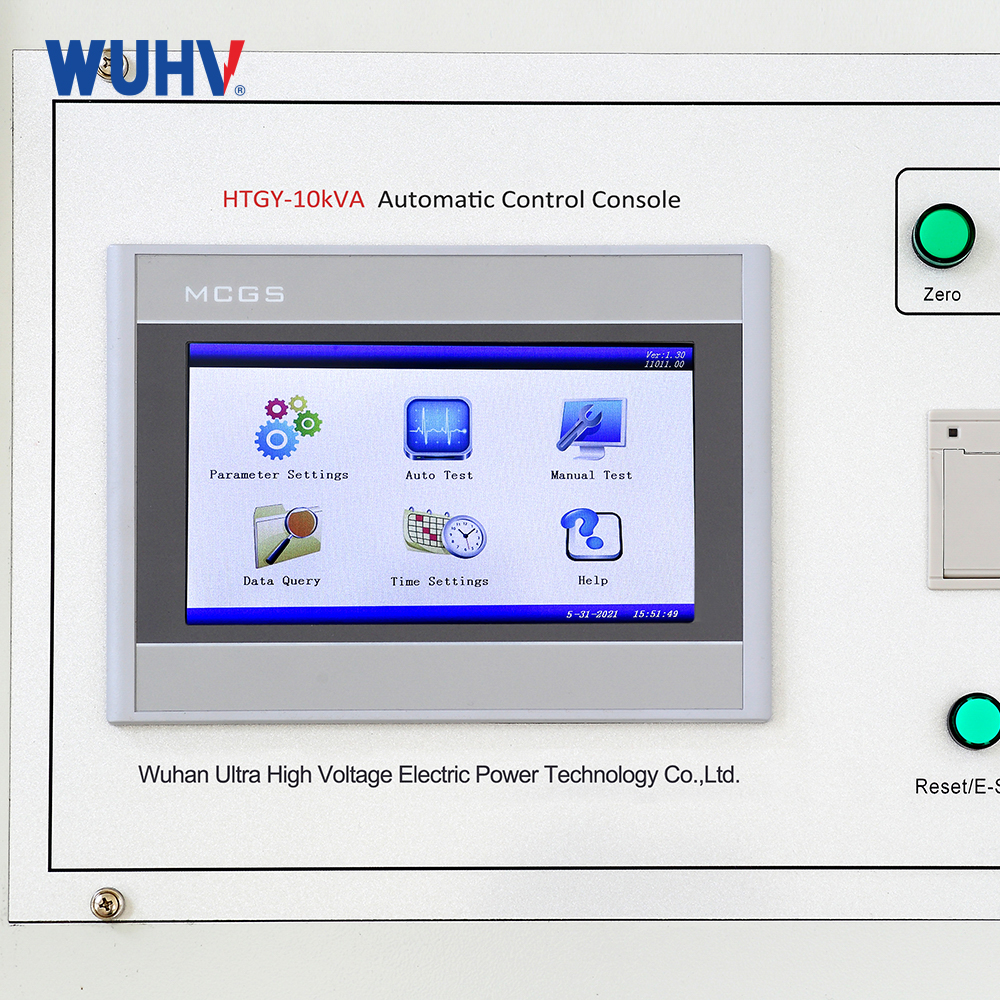

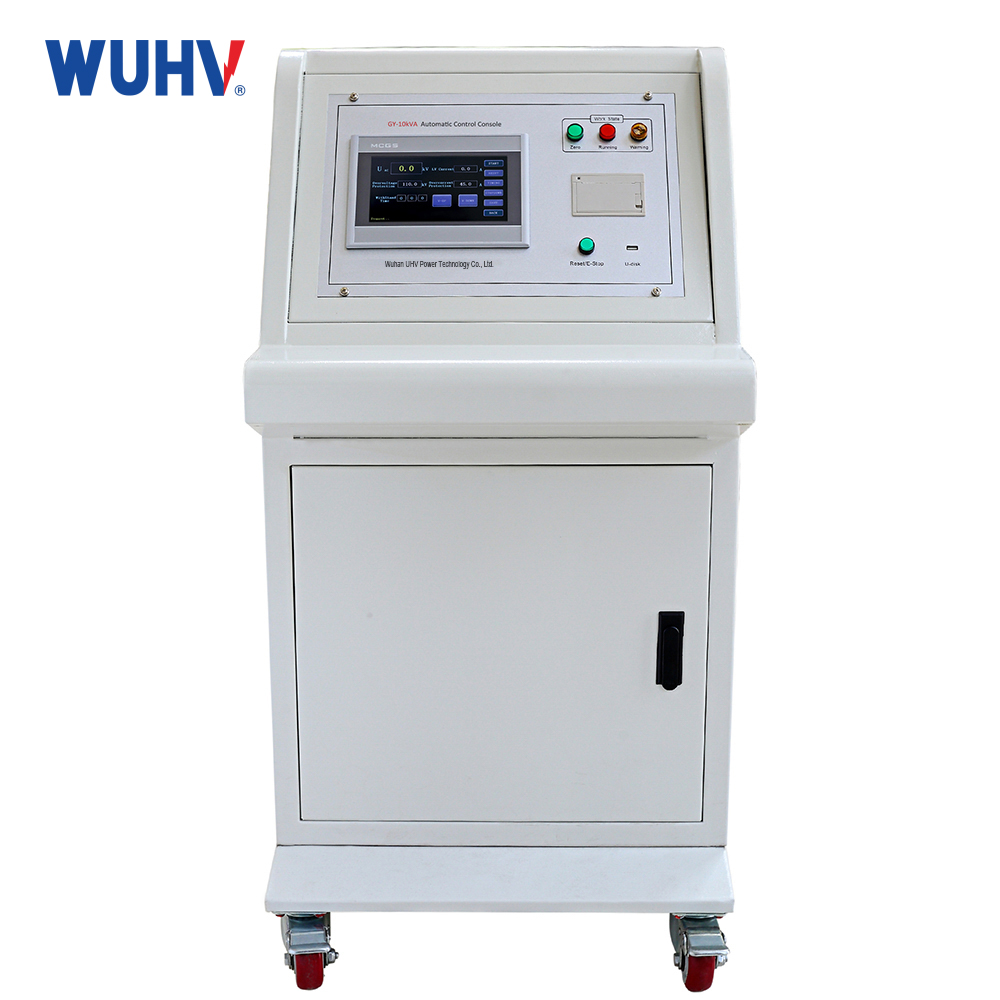

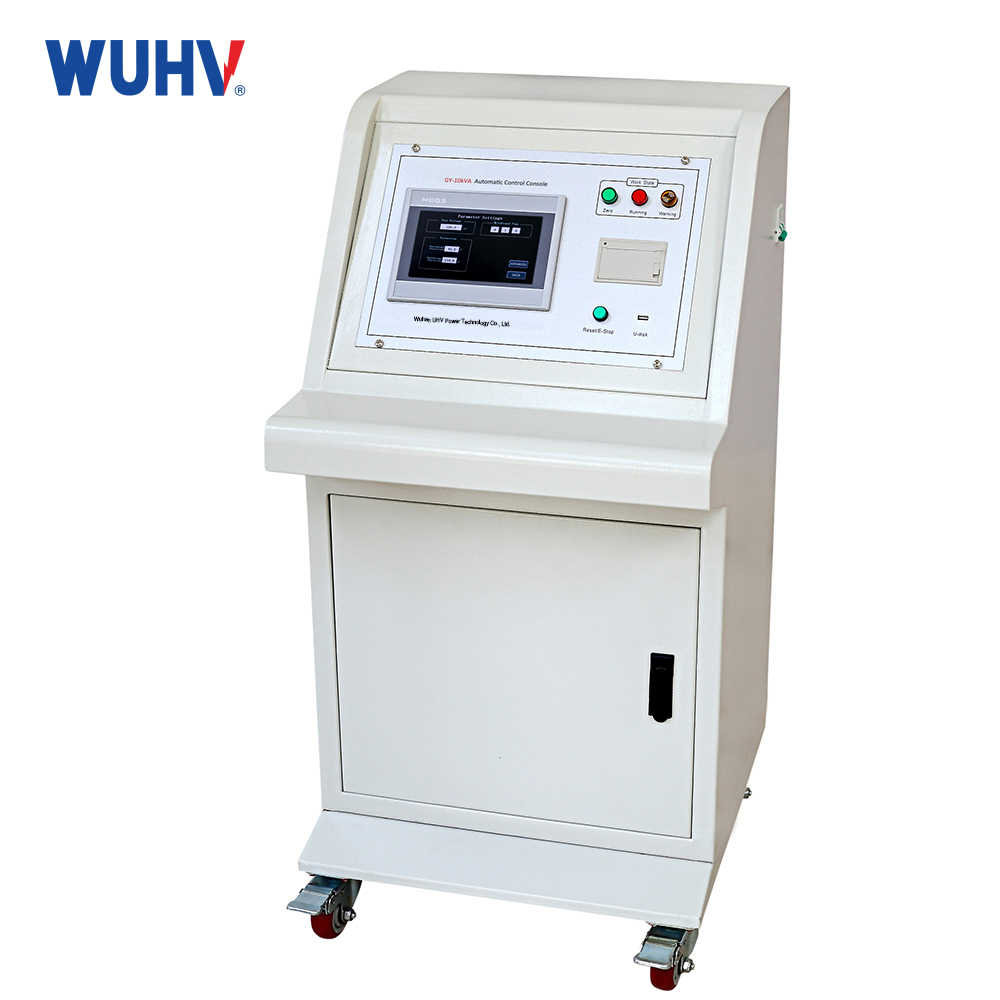

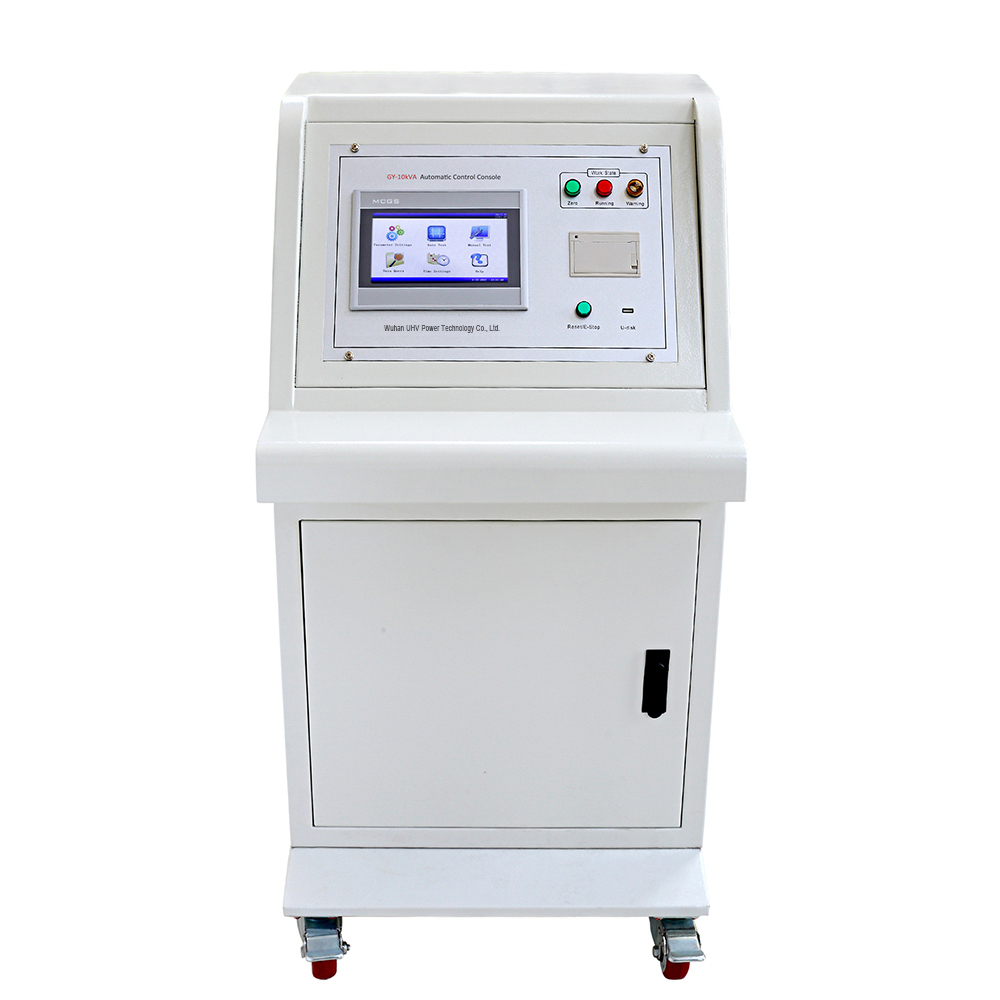

7" High-Resolution Touch Interface
Bright 800×480 full-color PLC screen
Unified display of tension, current, time, status, and prompts
Intuitive visualization with exceptional readability
WindowsXP OS
Streamlined operation adaptable to diverse test scenarios
Touch-Driven Safety
High-precision touchscreen for all function settings
Enhanced operational safety and system reliability
Digital Calibration
Replaces legacy potentiometers with password-protected digital adjustment
Ensures field-friendly precision control
Programmable Transformer Ratio
Password-protected VT ratio setting
Supports multi-voltage transformers via single console
Intuitive Workflow
Chinese-language guided operations
Status prompts enable operation without manuals
Active Safety Monitoring
Real-time "Test-in-Progress" display
Continuous operator safety alerts
Alarm System
Audible/visual alarms for test anomalies
Auto-Timing & Zero-Return
STOPWATCH mode: Automatic timing at target voltage → Results display → Auto-zero reset
Manual Voltage Ramp
Traditional step-adjustment via buttons
Auto-limit detection with overvoltage protection
Intelligent Ramp Control
Boost rate auto-reduction at 90% target voltage
Ensures voltage accuracy
Customizable Boost Speed
Adjustable ramp rates for optimal transformer matching
Anti-Interference Design
Hardware/software noise suppression
Uncompromised stability in EMI environments
Integrated Printing
Instant printouts of test data, dates, and parameters
USB Data Export
Save tests to USB drives for long-term archiving
