XC Control Cabinet
Product Introduction

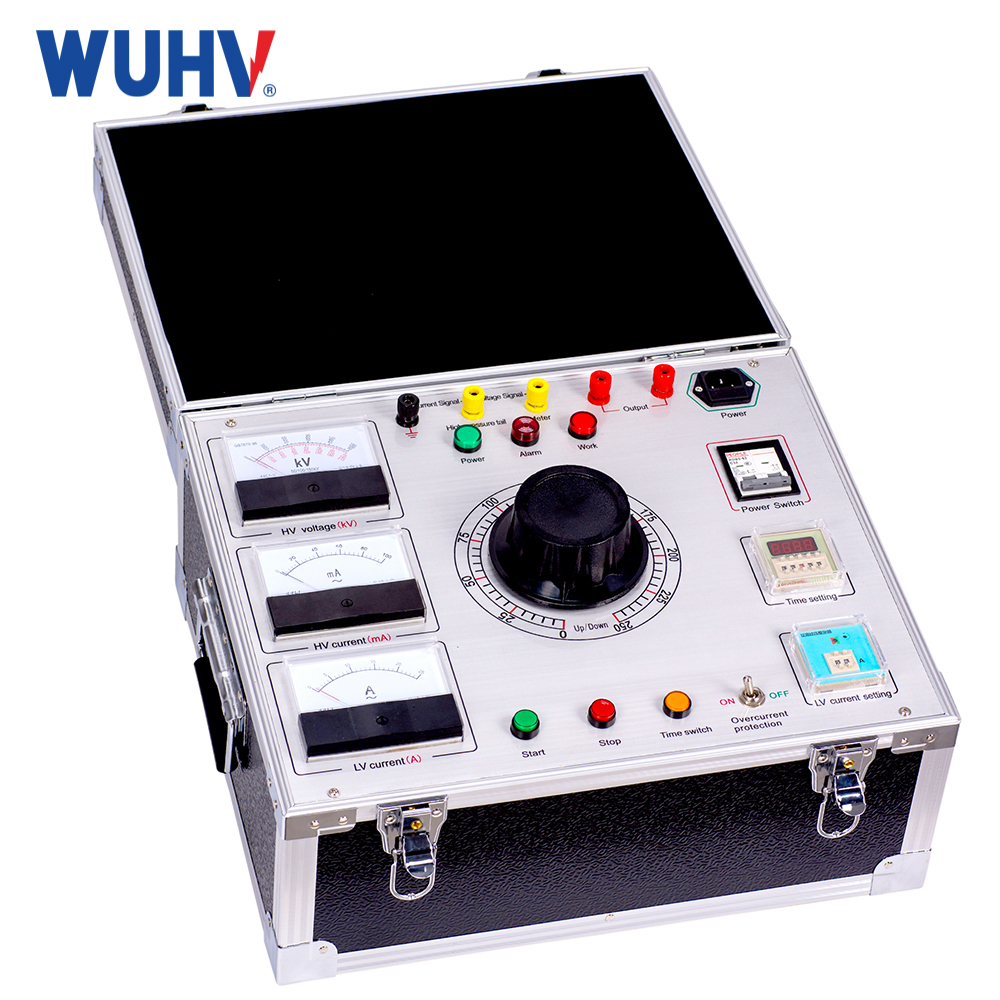

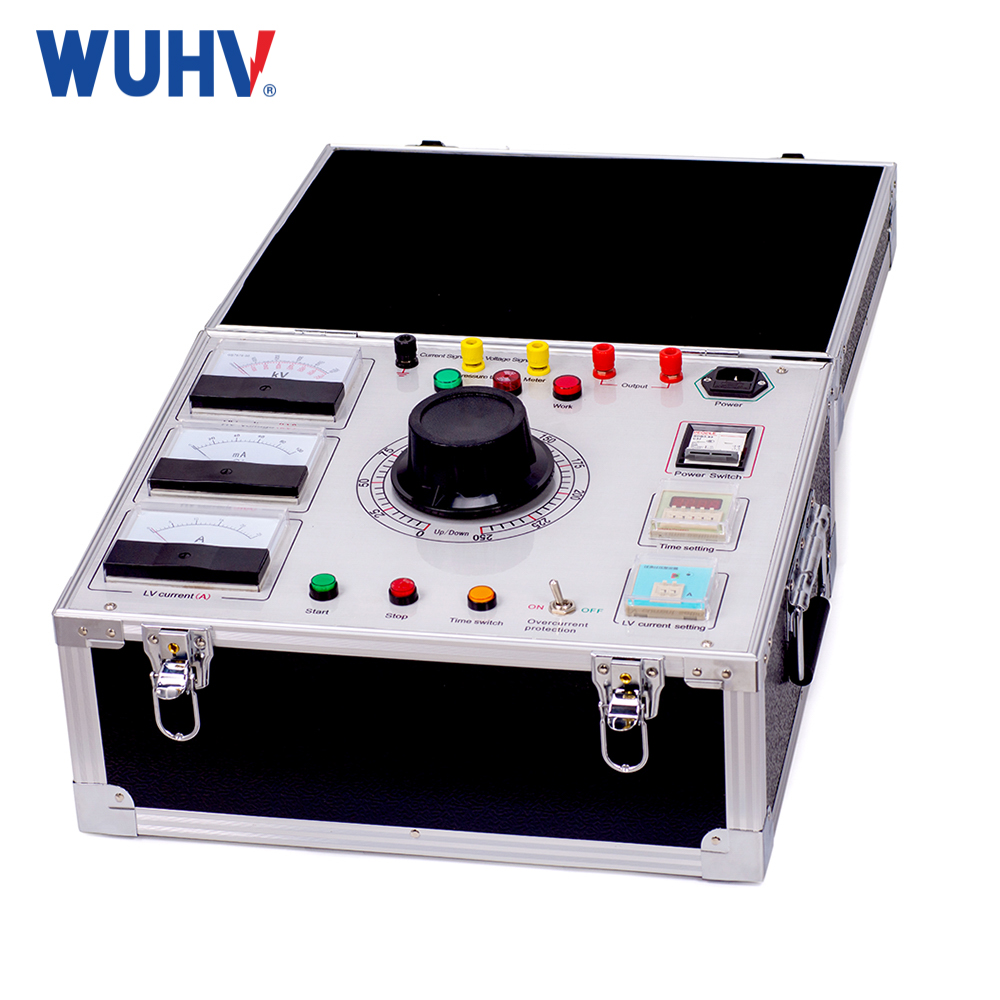

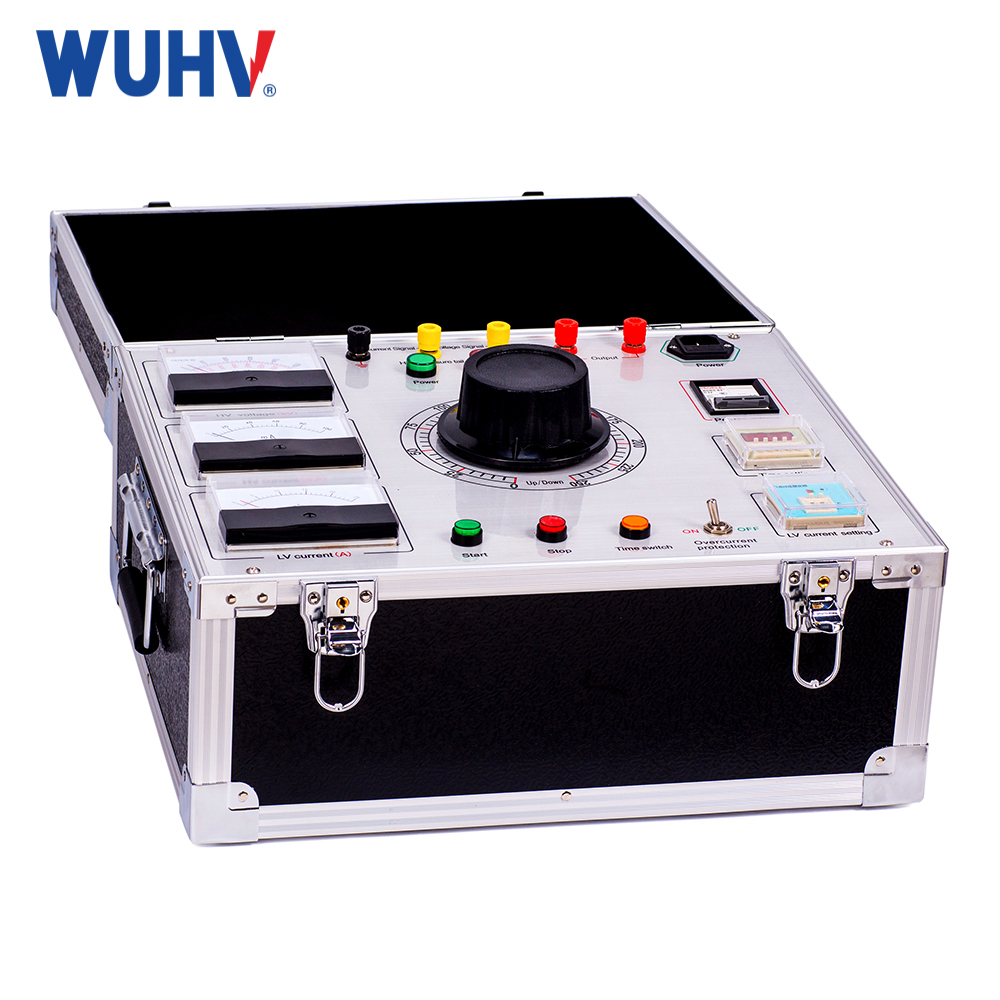

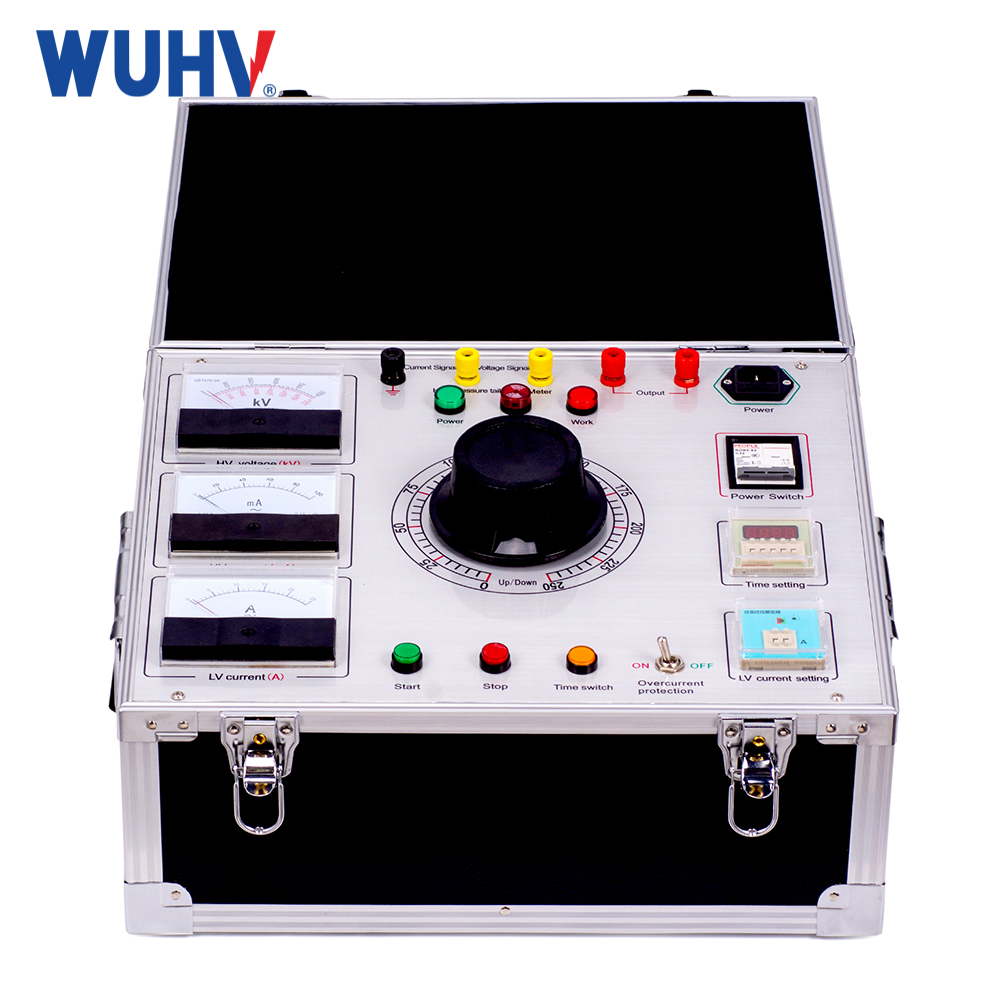

The XC/TC Series Test Transformer Control Box (Console) is a dedicated auxiliary device designed for use with the series test transformers manufactured by Wuhan UHV Company. Featuring user-friendly operation, easy maintenance, and high reliability, this control box delivers excellent performance in a safe, robust, and aesthetically designed structure. Its durable and portable construction makes it ideal for on-site use, serving as essential equipment for power supply companies, industrial plants, metallurgical facilities, power plants, railways, and other electrical maintenance departments.
Parámetros técnicos
| Temperatura ambiental | 0～40℃ |
| altitud | < 100m |
| humedad relativa | < 85% |
Use and Maintenance
1. During acceptance, check whether the main control circuit wiring is loose and the voltage regulator brush is in good contact.
2. When not in use for a long time, 500V Megohmeter is used to measure insulation resistance before use, and its resistance value is not less than 0.5M.
3. The power supply voltage shall be in accordance with the input voltage value on the nameplate of the cabinet.
4. This cabinet is equipped with over-current protection, andthefactory has been adjusted to 80% of the rated current. Whenused for low load, it should be reset according to therated capacity current of the tested product.
5. After use, the cover of the cabinet should be closed to keep the inside of the cabinet clean.
Product Characteristics
1. Comprehensive Monitoring: Provides real-time display of output current, instrument voltage, null-reading cross pointer, closing indicator, and timing status.
2. Integrated Protection: Equipped with overcurrent protection and an automatic timer for enhanced safety control.
3. Advanced Timing: Features a new-generation time relay with a significantly wider timing range for flexible test settings.
4. Precise Protection: Utilizes a high-accuracy current relay to ensure reliable operation and improved safety for both personnel and equipment.
5. Compact Design: Engineered with a rational structure, compact size, and lightweight construction for easy portability and operation.
