Product Introduction

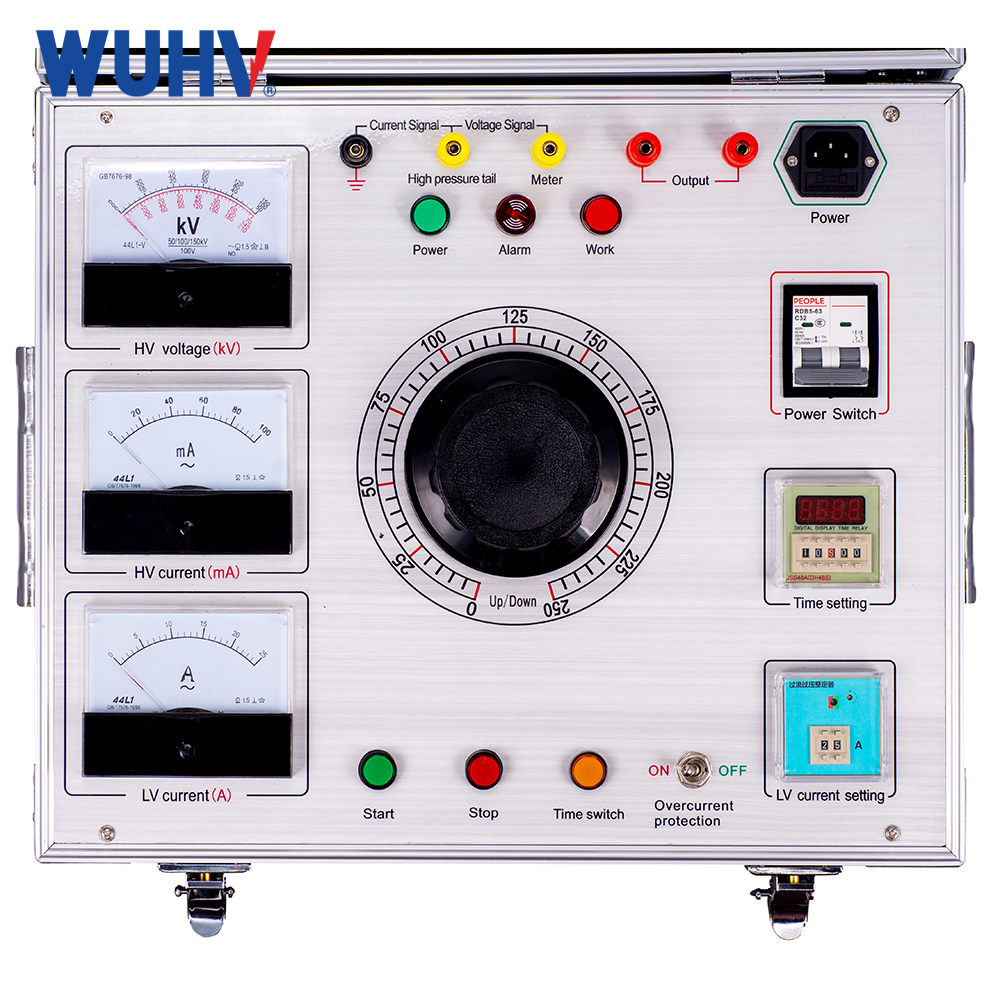

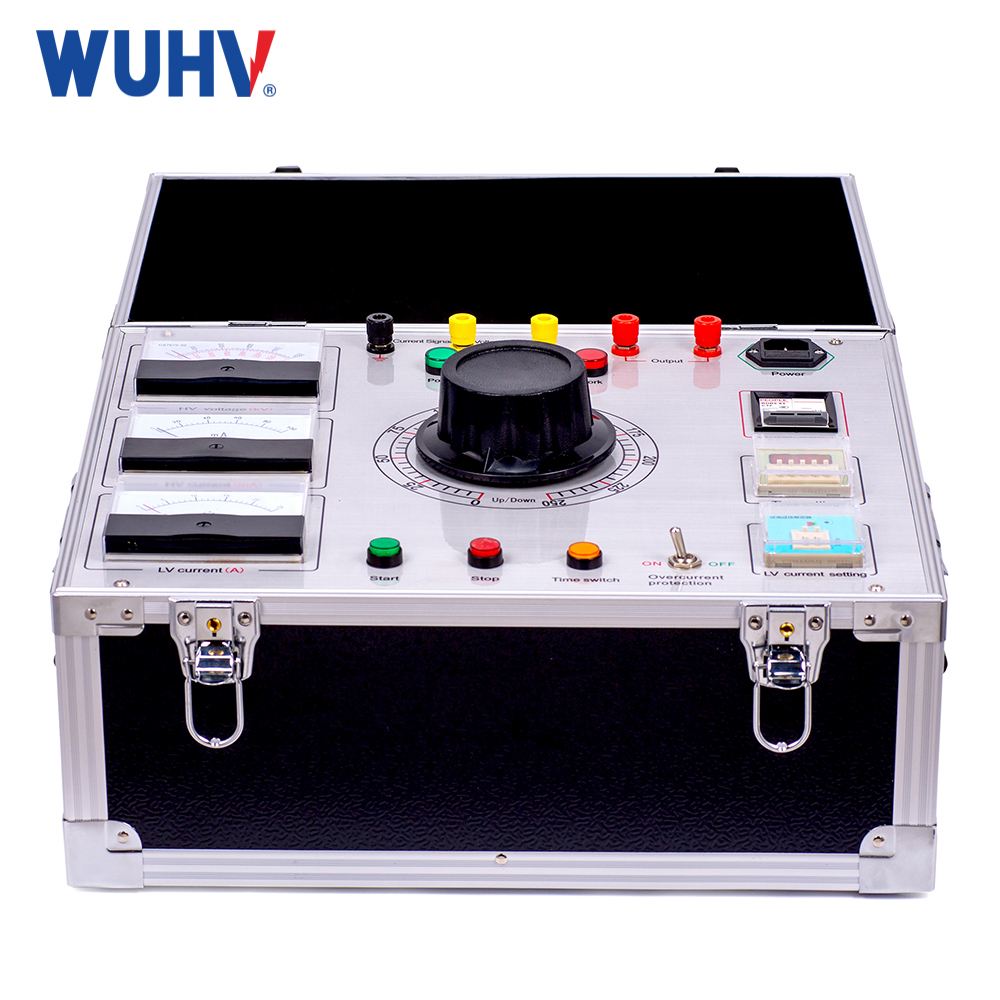

The GTB 5kVA Pointer Dry Type AC/DC Hipot Tester is a robust, analog test set designed for dielectric withstand testing on high-voltage equipment such as transformers, cables, and switchgear. Its key features include a 5kVA power rating, which provides sufficient output to effectively test capacitive loads, and a dry-type design that uses air instead of oil for insulation, making it more environmentally friendly and easier to maintain. The pointer-style analog meters offer clear, real-time voltage and leakage current readings, while the simple, manual operation ensures reliability and durability in demanding industrial environments. This tester is ideal for applications where digital automation is not required, but proven performance and straightforward functionality are essential.
Parámetros técnicos
| impedance voltage | ≤12% |
| output voltage wave form | sinusoid |
| surface temperature rise | ＜55℃ |
| no-load current | ＜4% |
Main product specifications
| specifications and models | capacity(kVA) | input voltage(V) | output voltage(kV) | output current(mA) | Salida CC de alto voltaje | weight(kg) |
| 1.5/50 | 1.5 | 200 or 400 | 50 | 30 | 70 | 15 |
| 5/15 | 5 | 333 | 15 | |||
| 3/50 | 3 | 60 | 20 | |||
| 5/50 | 5 | 100 | 27 | |||
| 6/50 | 6 | 120 | 30 | |||
| 10/30 | 10 | 333 | 30 | |||
| 10/50 | 10 | 200 | 40 | |||
| 15/50 | 15 | 300 | 50 | |||
| 20/50 | 20 | 400 | 55 | |||
| 25/50 | 25 | 500 | 60 | |||
| 30/50 | 30 | 600 | 65 | |||
| 15/25 | 15 | 220 | 25 | 600 | 200 | 72 |
| 5/100 | 5 | 200 or 400 | 100 | 50 | 140 | 60 |
| 10/100 | 10 | 100 | 65 | |||
| 10/120 | 10 | 120 | 70 | |||
| 15/100 | 15 | 150 | 75 | |||
| 20/100 | 20 | 200 | 75 | |||
| 25/100 | 25 | 250 | 80 | |||
| 15/120 | 15 | 120 | 125 | / | 120 | |
| 20/120 | 20 | 160 | 130 | |||
| 25/120 | 25 | 200 | 140 | |||
| 30/120 | 30 | 250 | 150 |
Características del producto
1. Compact, Lightweight & Maintenance-Free: The dry test transformer features small size, light weight, a compact structure, and requires no maintenance.
2. Simple and Intuitive Wiring: Easy to use with straightforward wiring and user-friendly operation.
3. Reliable Insulation & Attractive Appearance: Offers excellent insulation reliability combined with a sleek, aesthetically pleasing design.
4. Overcurrent Protection: Equipped with overcurrent protection for enhanced safety and equipment longevity.
