Product Introduction

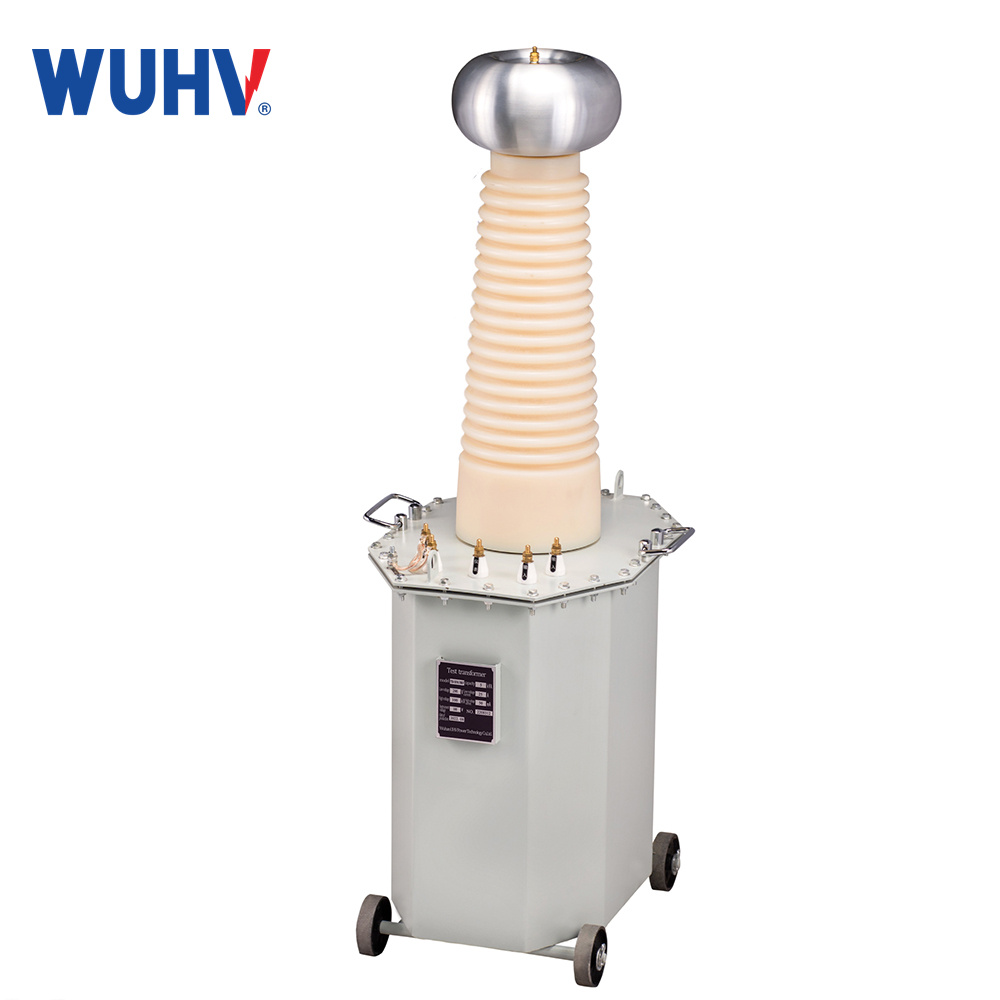

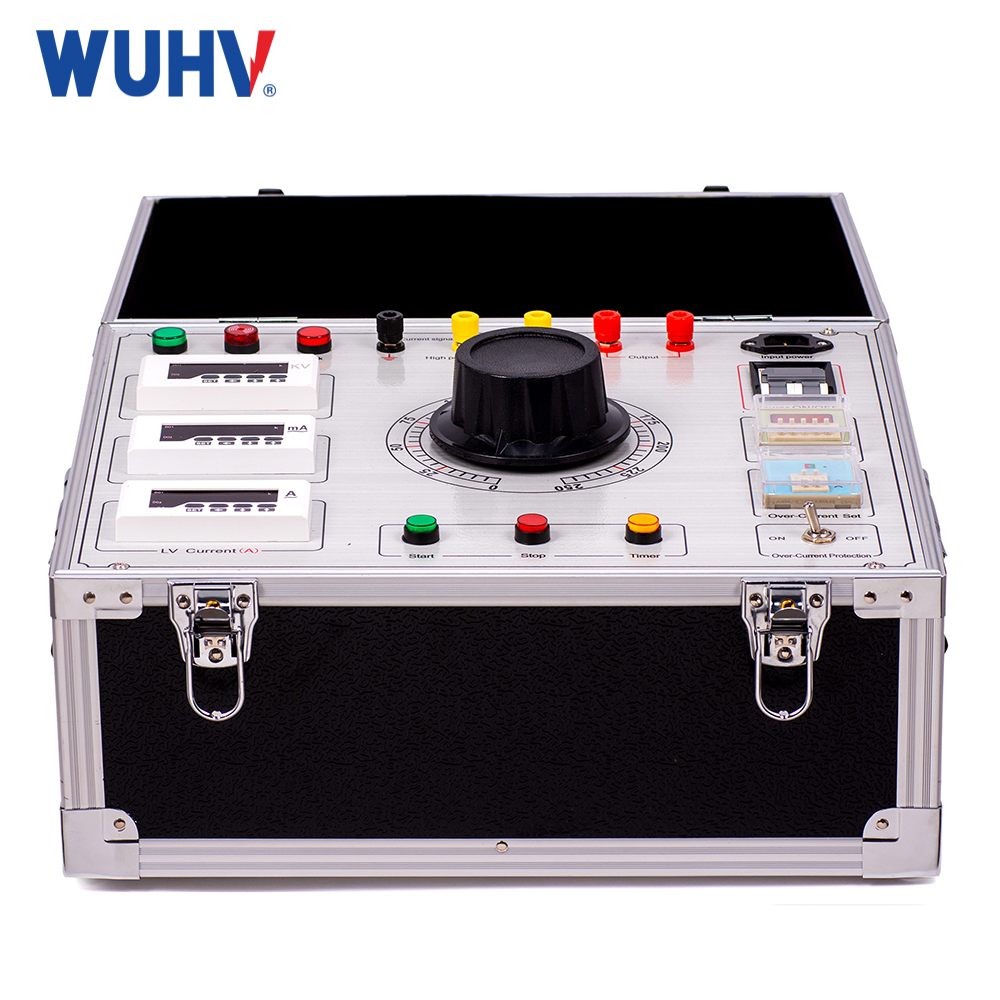

The YDJ Digital Display 5kVA AC/DC Hipot Test Set is a versatile testing system that combines a moderate 5kVA capacity with digital precision for reliable dielectric withstand testing on medium-sized electrical equipment. Its dual AC/DC capability, programmable controls, and comprehensive safety features make it an ideal choice for both quality control and maintenance applications in industrial and utility settings.
Product Characteristics
1. Premium Materials & Reliable Quality – The high-voltage test transformer is built with carefully selected materials, ensuring reliable performance and excellent operational stability.
2. High Voltage Margin & Low Partial Discharge – Designed with a generous voltage margin, a compact corona ring, and minimal partial discharge levels for superior electrical performance.
3. Compact & Lightweight Design – Utilizes advanced new insulation materials, resulting in reduced size and lighter weight for enhanced portability and ease of installation.
Parámetros técnicos
| specifications and models | capacity(kVA) | High Voltage(kV) | high-tension current(mA) | ow input voltage | ratio of transformation(high /rites) | temperature rise℃(30 minutes) | |
| tension(V) | electricity(A) | ||||||
| YDJ-3/50 | 3 | 50 | 60 | 200 | 15 | 500 | 10 |
| YDJ-5/50 | 5 | 50 | 100 | 200 | 25 | 500 | 10 |
| YDJ-10/50 | 10 | 50 | 200 | 200 | 50 | 500 | 10 |
| YDJ-20/50 | 20 | 50 | 400 | 400 | 50 | 500 | 10 |
| YDJ-30/50 | 30 | 50 | 600 | 400 | 50 | 500 | 10 |
| YDJ-50/50 | 50 | 50 | 1000 | 400 | 125 | 500 | 10 |
| YDJ-5/100 | 5 | 100 | 50 | 200 | 25 | 1000 | 10 |
| YDJ-10/100 | 10 | 100 | 100 | 400 | 25 | 1000 | 10 |
| YDJ-10/25 | 10 | 25 | 400 | 400 | 25 | 1000 | 10 |
| YDJ-20/100 | 20 | 100 | 200 | 400 | 50 | 1000 | 10 |
| YDJ-30/100 | 30 | 100 | 300 | 400 | 75 | 1000 | 10 |
| YDJ-50/100 | 50 | 100 | 500 | 400 | 125 | 1000 | 10 |
| YDJ-15/150 | 15 | 150 | 100 | 400 | 37.5 | 1000 | 10 |
| YDJ-20/150 | 20 | 150 | 133 | 400 | 50 | 1000 | 10 |
| YDJ-30/150 | 30 | 150 | 200 | 400 | 75 | 1000 | 10 |
| YDJ-50/150 | 50 | 150 | 333 | 400 | 125 | 1000 | 10 |
| YDJ-100/150 | 100 | 150 | 667 | 400 | 250 | 1000 | 10 |
| YDJ-50/200 | 50 | 200 | 250 | 400 | 125 | 1000 | 10 |
| YDJ-100/200 | 100 | 200 | 500 | 400 | 250 | 1000 | 10 |
| YDJ-150/200 | 150 | 200 | 750 | 400 | 375 | 1000 | 10 |
| YDJ-200/200 | 200 | 200 | 1000 | 400 | 500 | 1000 | 10 |
| YDJ-300/200 | 300 | 200 | 1500 | 400 | 750 | 1000 | 10 |
| YDJ-50/300 | 50 | 300 | 170 | 400 | 125 | 1000 | 10 |
| YDJ-100/300 | 100 | 300 | 333 | 400 | 250 | 1000 | 10 |
| YDJ-150/300 | 150 | 300 | 500 | 400 | 375 | 1000 | 10 |
| YDJ-200/300 | 200 | 300 | 667 | 400 | 500 | 1000 | 10 |
| YDJ-300/300 | 300 | 300 | 3000 | 400 | 750 | 1000 | 10 |
