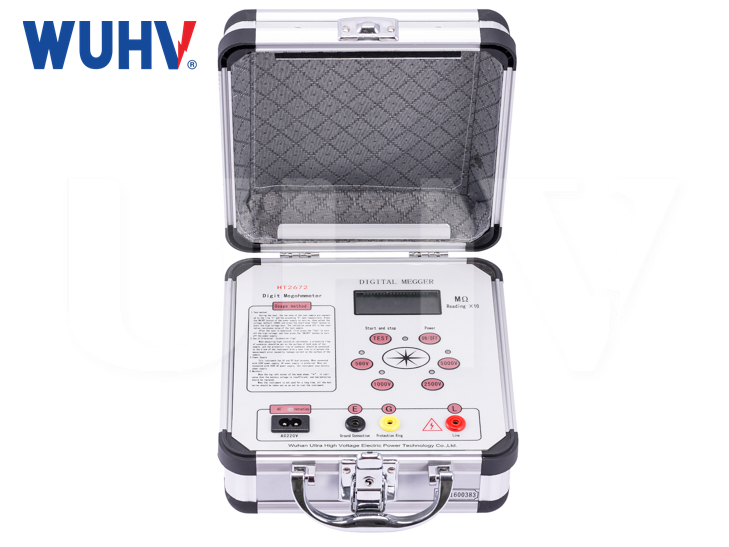

UHV-2672 Insulation Resistance Tester

This Insulation Resistance Tester utilizes large-scale integrated circuit technology to deliver exceptional performance characteristics:

Key Features:

1、High Power Output with robust short-circuit current capability

2、 Four Selectable Voltage Ranges for versatile testing applications

3、Battery-Powered DC/DC Conversion system generating precise test voltages

4、Intelligent Measurement Circuitry featuring:

I/V conversion technology

Precision voltage division

Direct LCD resistance readout

Measurement Principle:

The instrument generates DC high voltage from internal batteries, applying this potential between the E (earth) and L (line) terminals. Current flow through the test specimen is converted and processed to display accurate insulation resistance values on the digital display.

Technical Advantages:

✓ High measurement accuracy

✓ Multiple voltage range selection

✓ Reliable battery operation

✓ Clear digital readout

Características del producto

1、High-Performance Design

Features robust output power with exceptional load capacity

High-strength aluminum alloy casing for durability

Advanced anti-interference technology ensures measurement accuracy

Output short-circuit current >1.6mA enables rapid voltage stabilization

Proportional circuit design maintains precision even in low-resistance measurements

2、Smart Operation System

Battery-powered operation eliminates manual power generation

Automatic range switching for seamless measurement

Intuitive panel interface with clear LCD display

Streamlined workflow for efficient testing

3、Precision Measurement Capability

Direct measurement of output short-circuit current

Eliminates estimation requirements for improved accuracy

Optimized for both high and low resistance testing
